Navigation Module: Service and Repair




The control module is located in the left storage compartment in the luggage compartment.

Removing
- Open left storage compartment in luggage compartment.

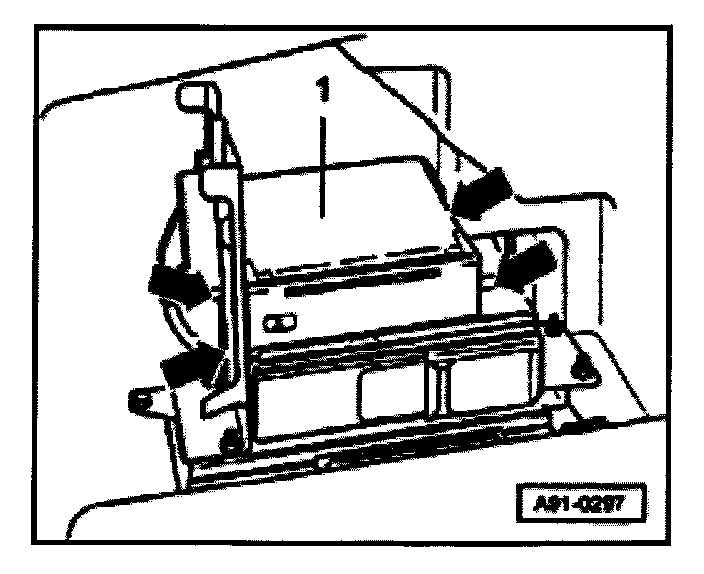

- Unscrew the four securing screws (arrows).
- Disconnect the electrical harness connector and the antenna wire at the rear of the control module.
- Remove the control module -1-.


WARNING!
Never use screws other than the original screws for securing the control module, as this could destroy the control module.


Installing
- Install in reverse order of removal.


NOTE:
When installing:
- The control module for navigation and installation frame must be installed together in horizontal position and free from vibration to avoid system trouble.
- In addition, air circulation must be ensured, meaning that ventilation slots of the control module may not be covered while installing.
- When replacing the control module, make sure to send in the completed form for navigation system complaint with the faulty component.
