Read Measuring Value Block (Function 08)
Initiating read measuring value block function
Indicated on display
Rapid data transfer HELP
Select function XX
- Press 0 and 8 buttons to select "Read measuring value block" function 08.
Indicated on display
Rapid data transfer Q
08 - Read measuring value block
- Press Q button to confirm input
Indicated on display
Read measuring value block
Input display group number XXX
- Enter display group number (from table) and press -Q- button to confirm input.
The selected measuring value block is now displayed in standard form.

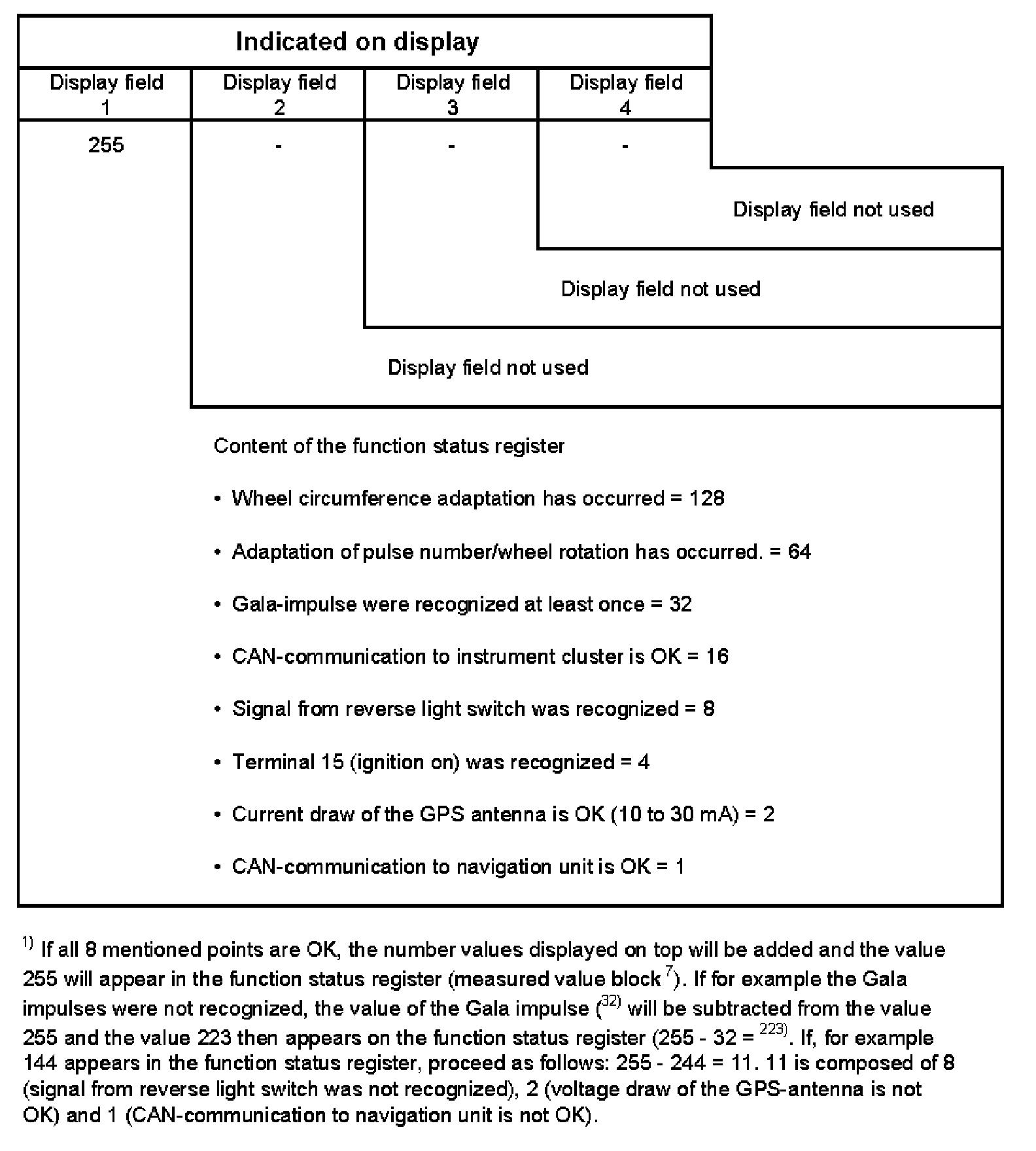

Display Group 001:

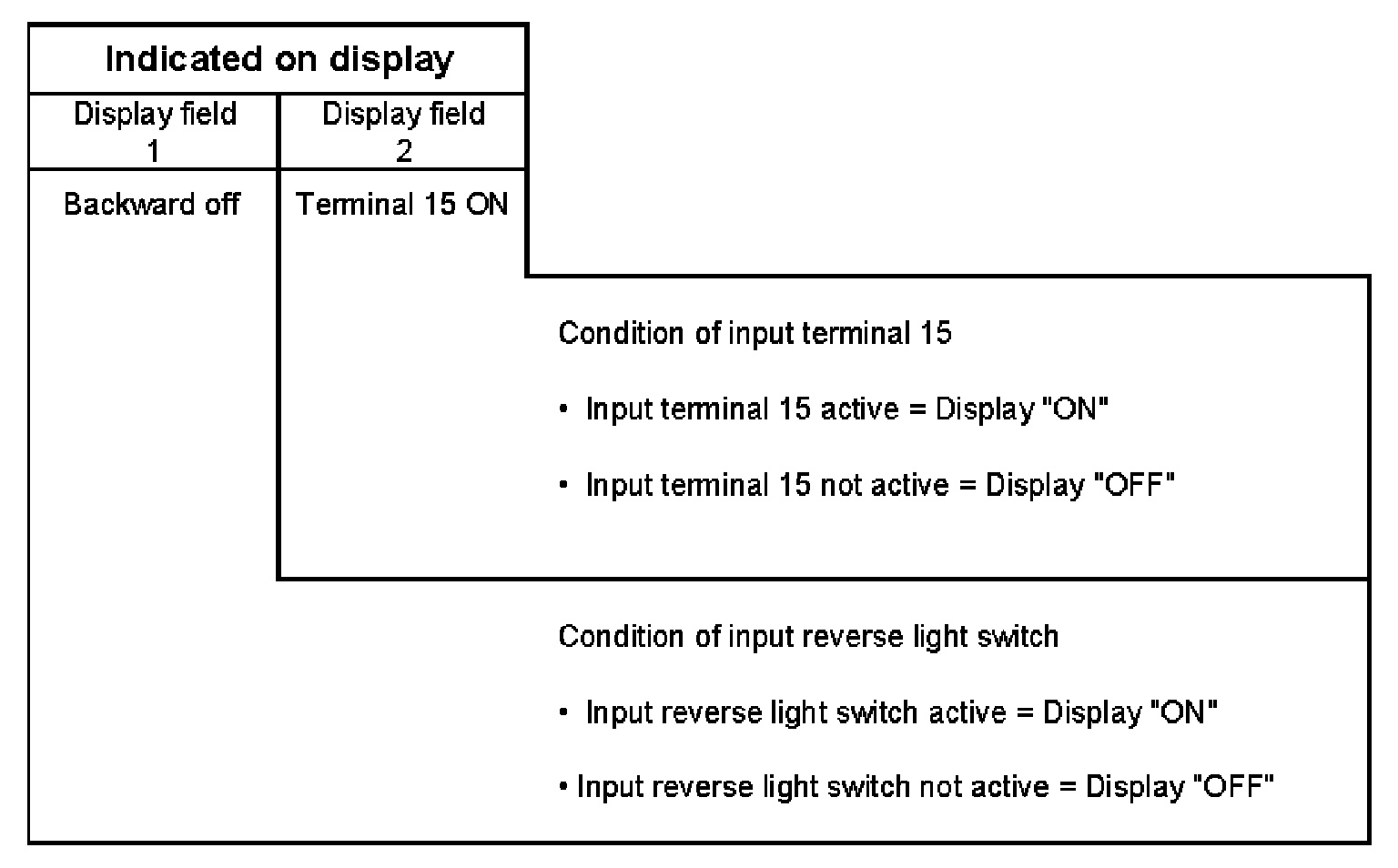

Display Group 002:

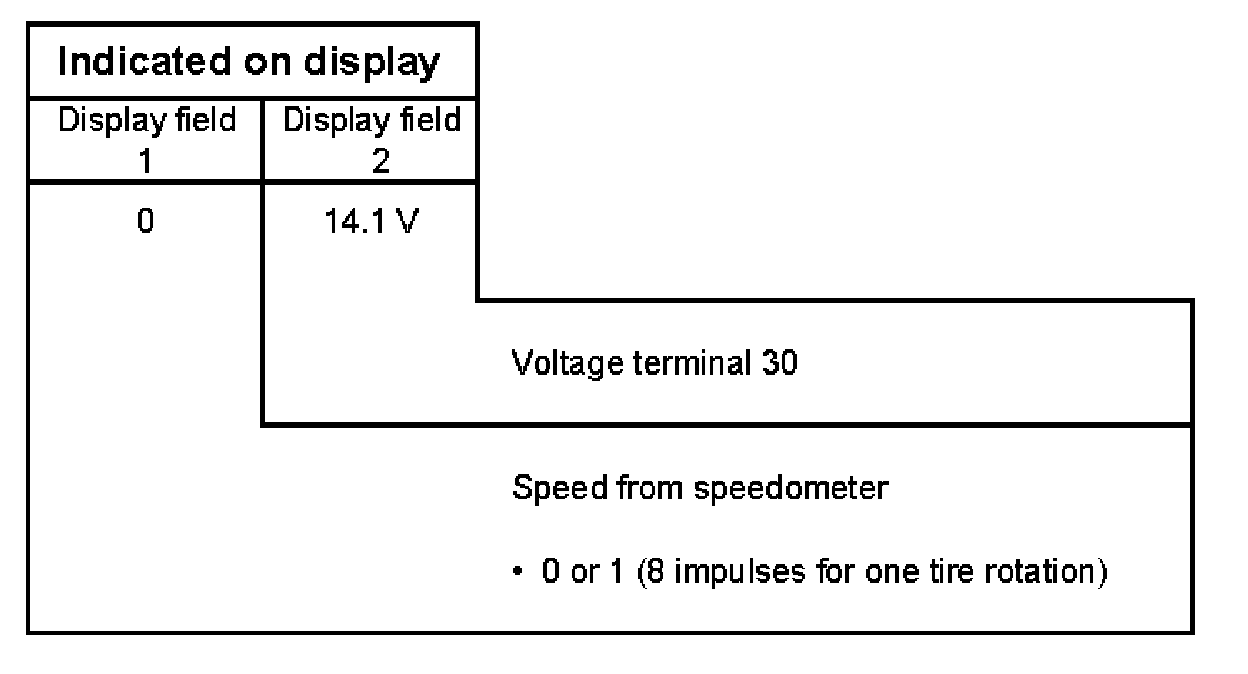

Display Group 003:

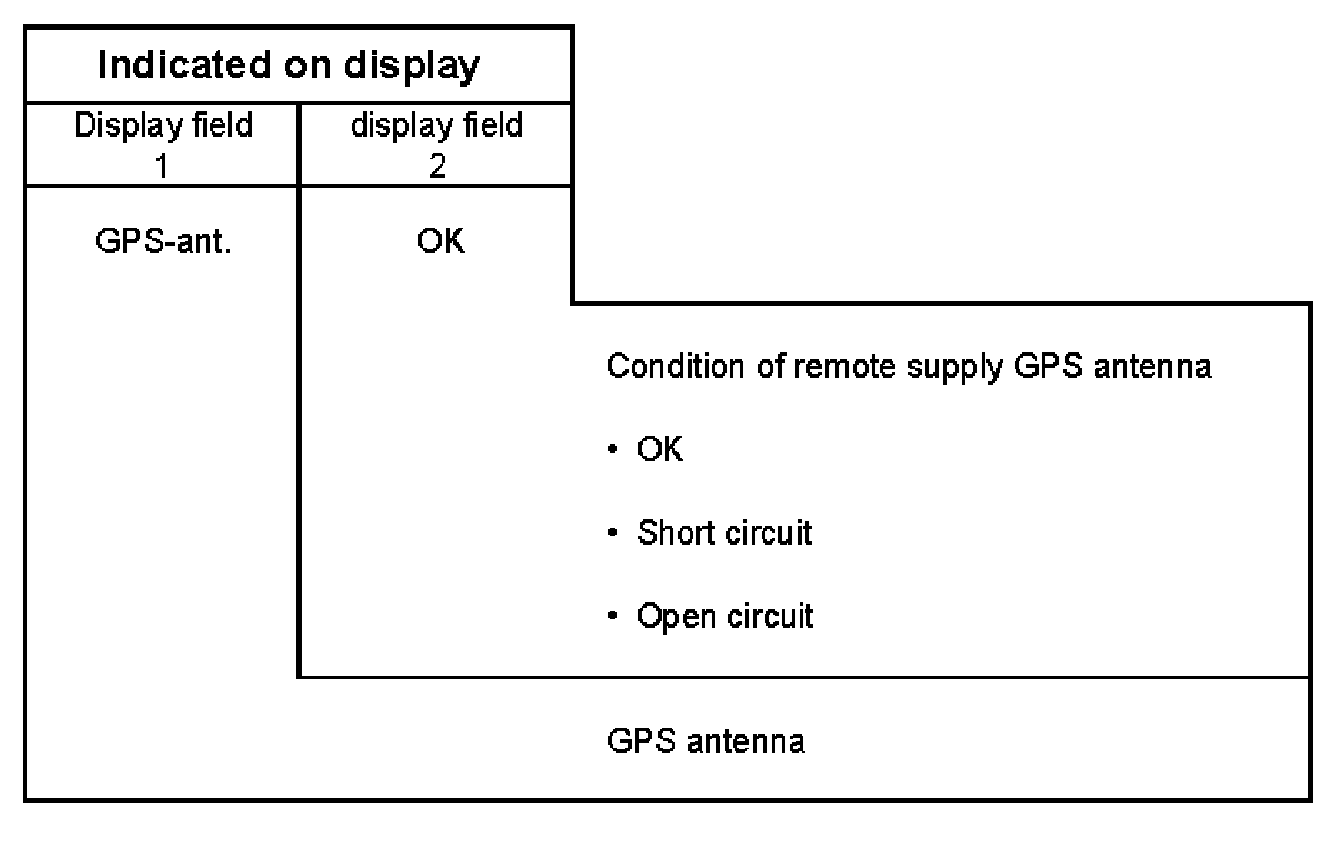

Display Group 004:

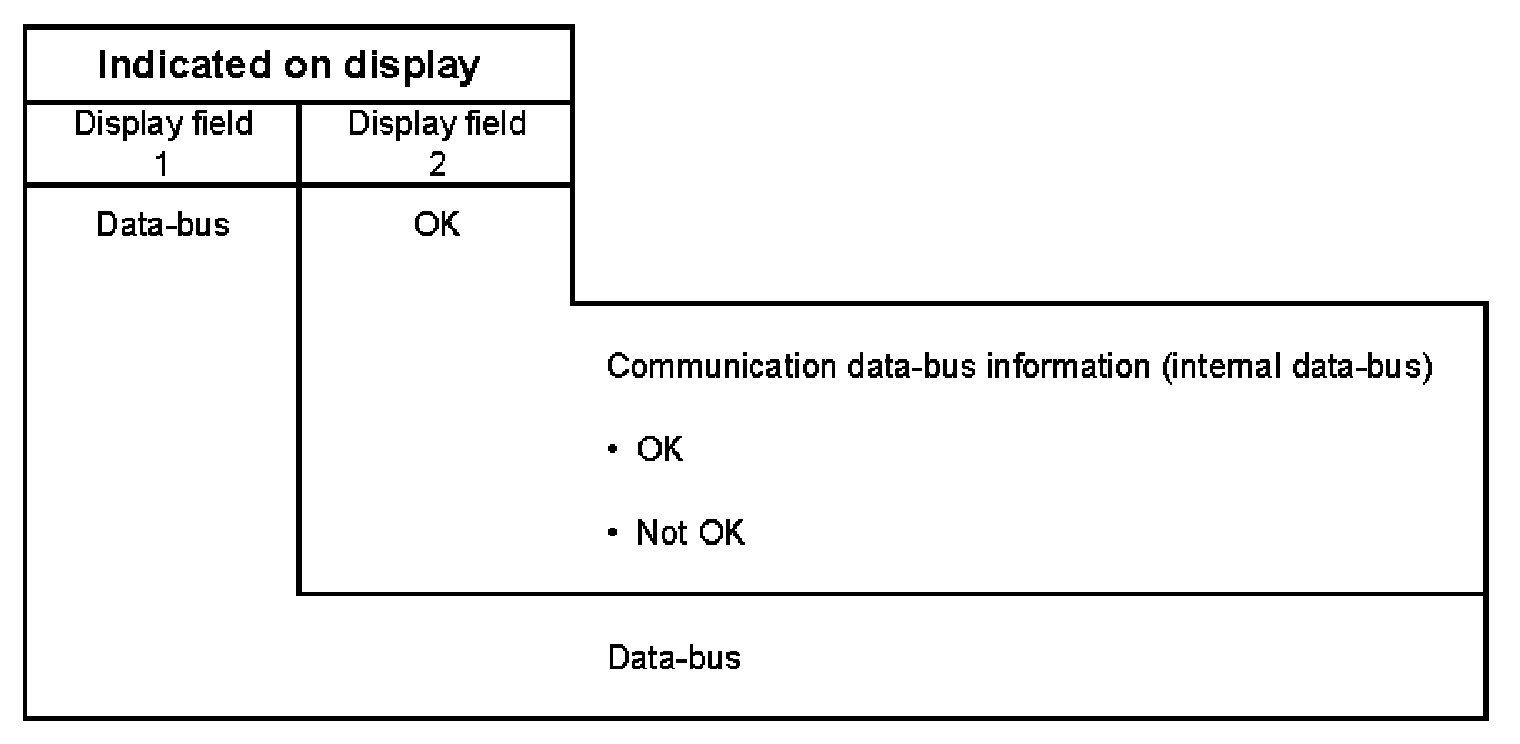

Display Group 005:

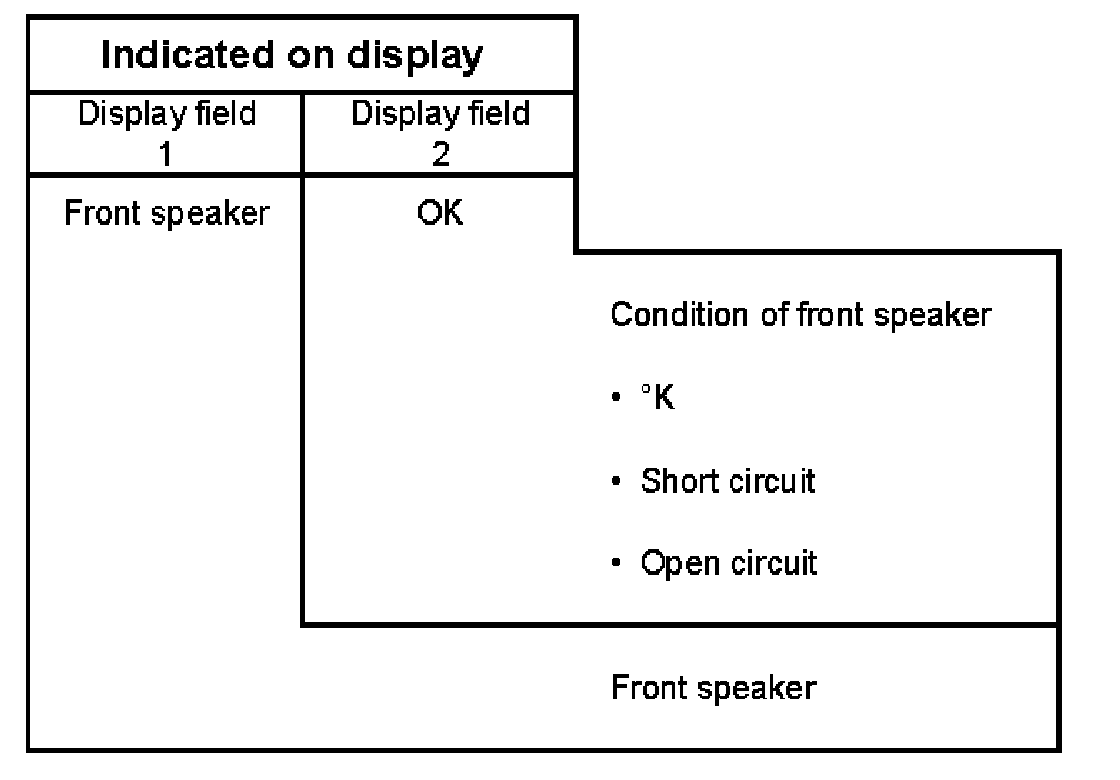

Display Group 006:

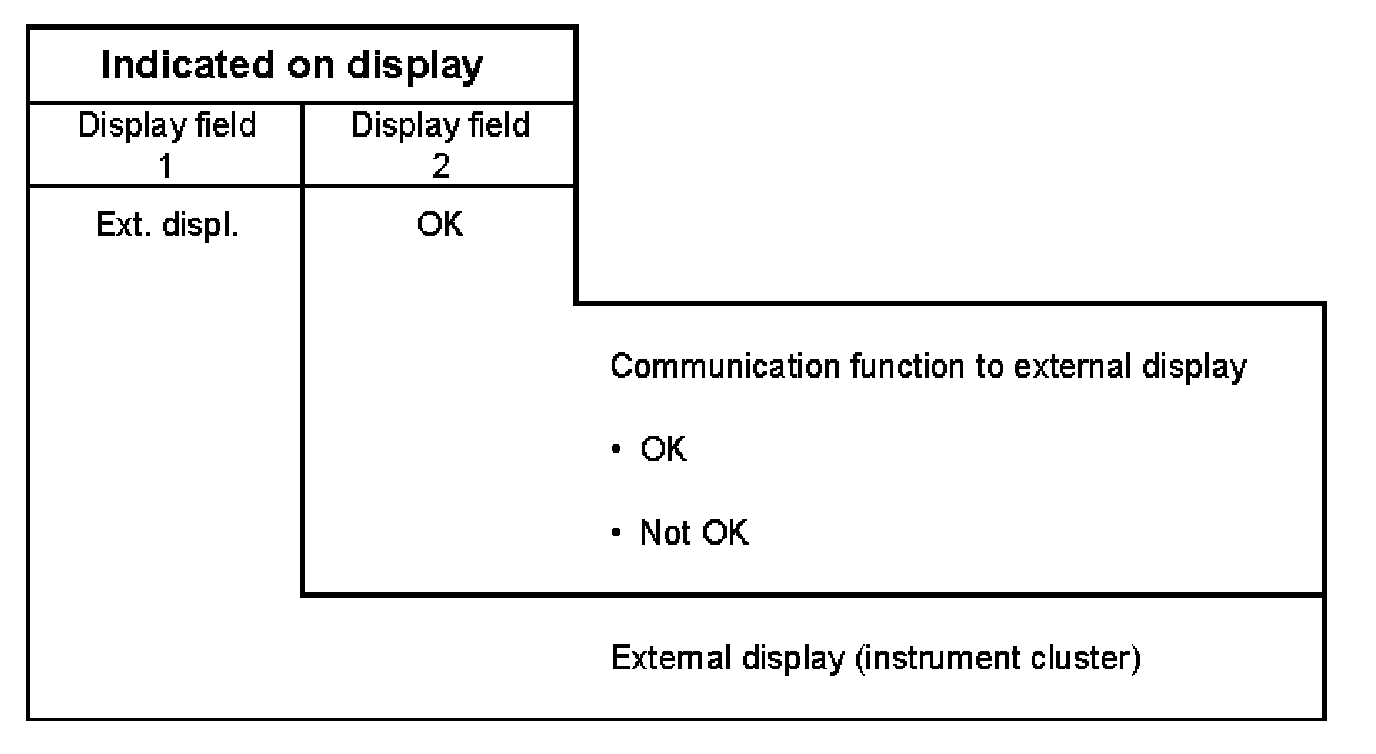

Display Group 007:

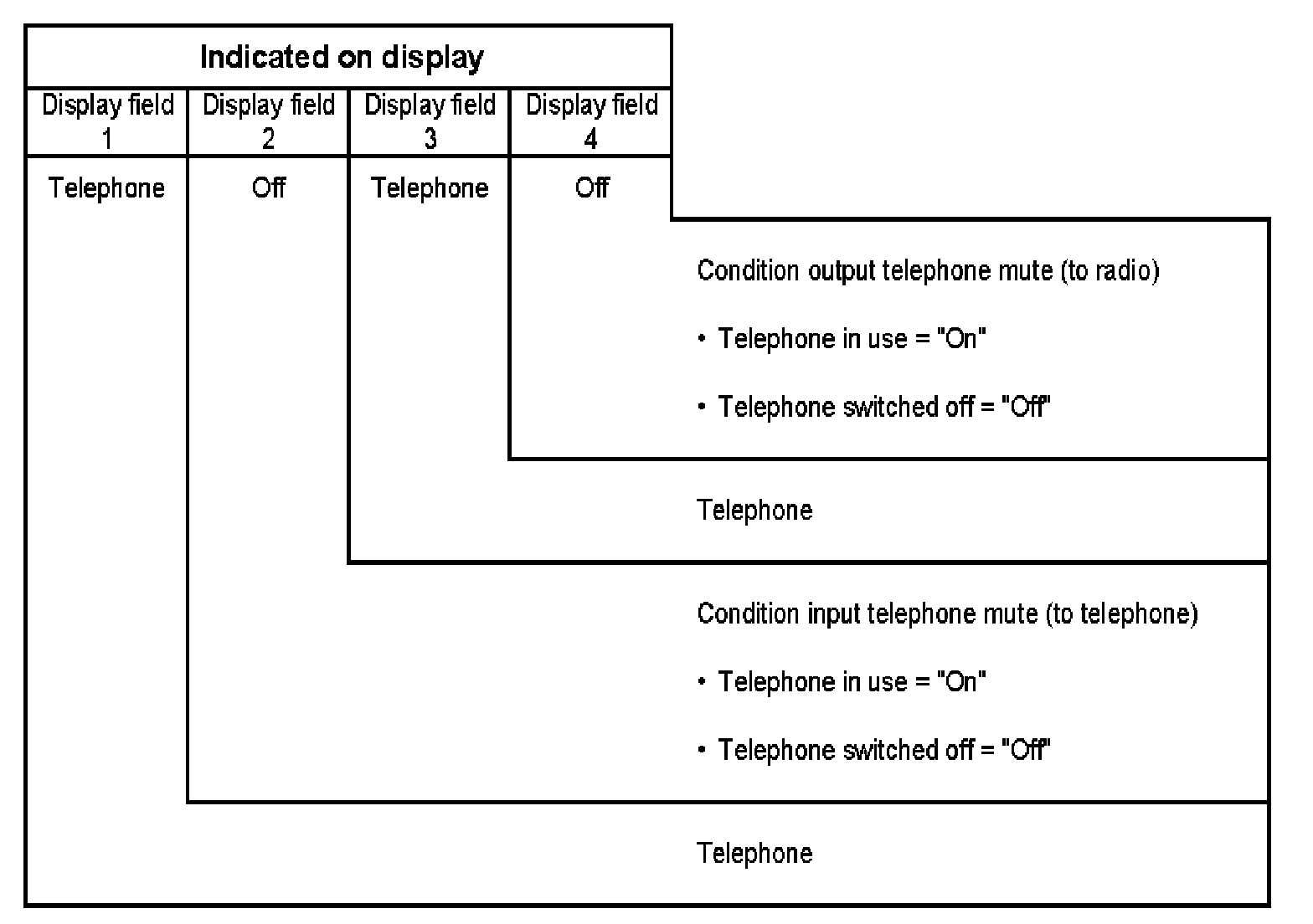

Display Group 008:
Display Group 010:
