Cruise Control Servo: Service and Repair
Actuators, Removing and InstallingThe installation position of the individual actuators may vary depending on the type of engine installed.
Removing: -
Remove vacuum line.
-
Disconnect linkage.
-

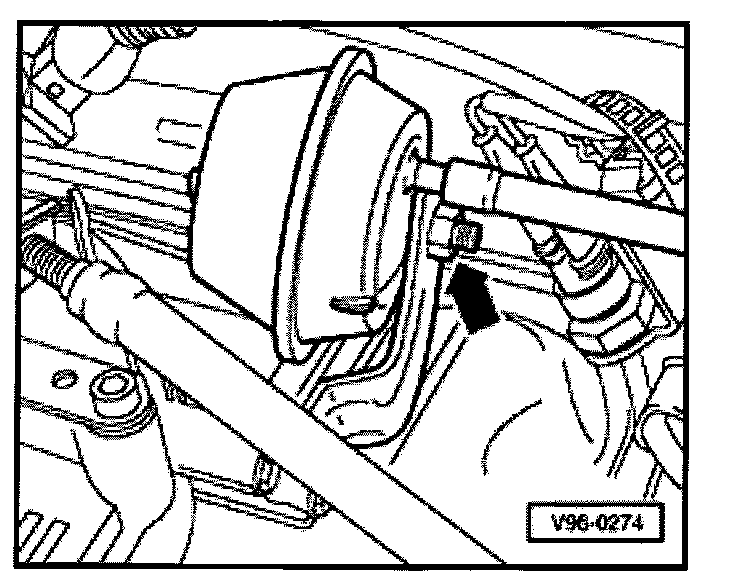

Remove actuator from bracket -arrow-.
Tightening torque:
25 Nm (18 ft lb)Installing: -
Installation is in reverse order of removal.
