Cruise Control: Locations

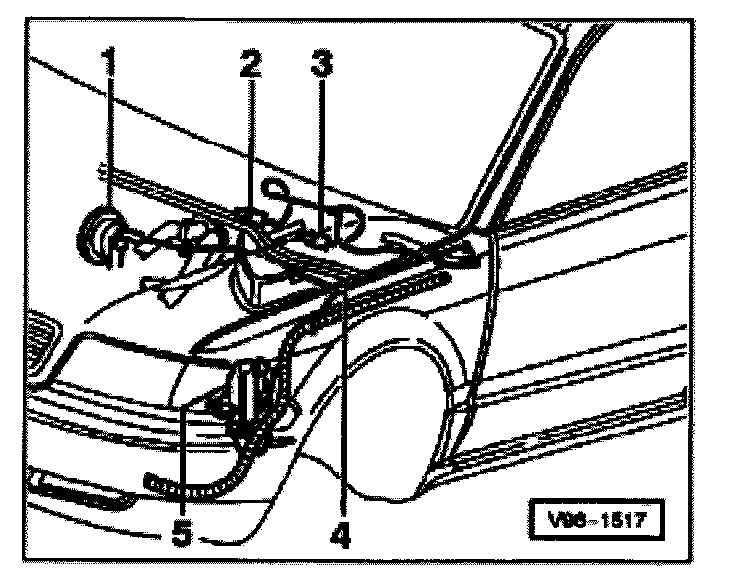

Cruise Control Components 1
-
Actuator with membrane
2
-
Brake vent valve
3
-
Clutch vent valve
4
-
Vacuum hose T-connector
5
-
Vacuum pump
NOTE: -
The operating switch is integrated in the turn signal lever.
-
Contact assignment on ignition switch
-
The cruise control, control module is located in the electronics box (E-box) in the plenum.
