Rear Axle Toe, Adjusting
Rear Axle Toe, Adjusting Wheel alignment specifications, Refer to Alignment, Specifications.
^

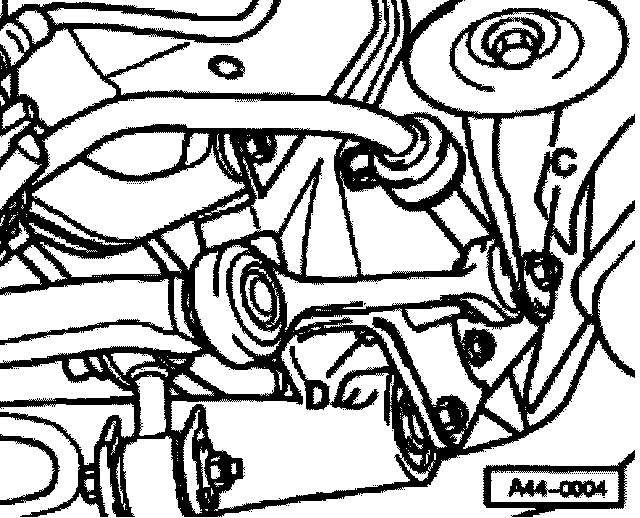

Remove securing nut -C-.
^
Adjust toe setting accordingly by turning eccentric bolt -D-.
^
Check toe setting again after tightening nut -C-.
Notes: ^
The maximum adjustment range is 90° to the left or right of the center position.
^
Changing the toe setting automatically changes the geometric driving axis.
