Remote Control Module: Service and Repair
Removing: -
Remove driver's side storage compartment

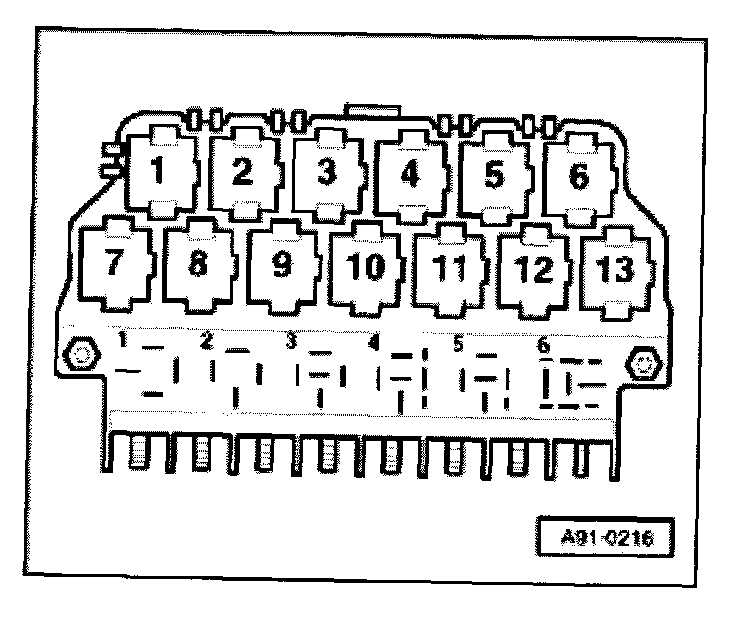

Control module for multi-function steering wheel -J453- is stored in a double relay housing and is located in relay socket -3- and -4- of relay carrier below the driver's side storage compartment.
-
Remove control module for multi-function steering wheel from relay socket.
Installing: -
Install in reverse order of removal.
