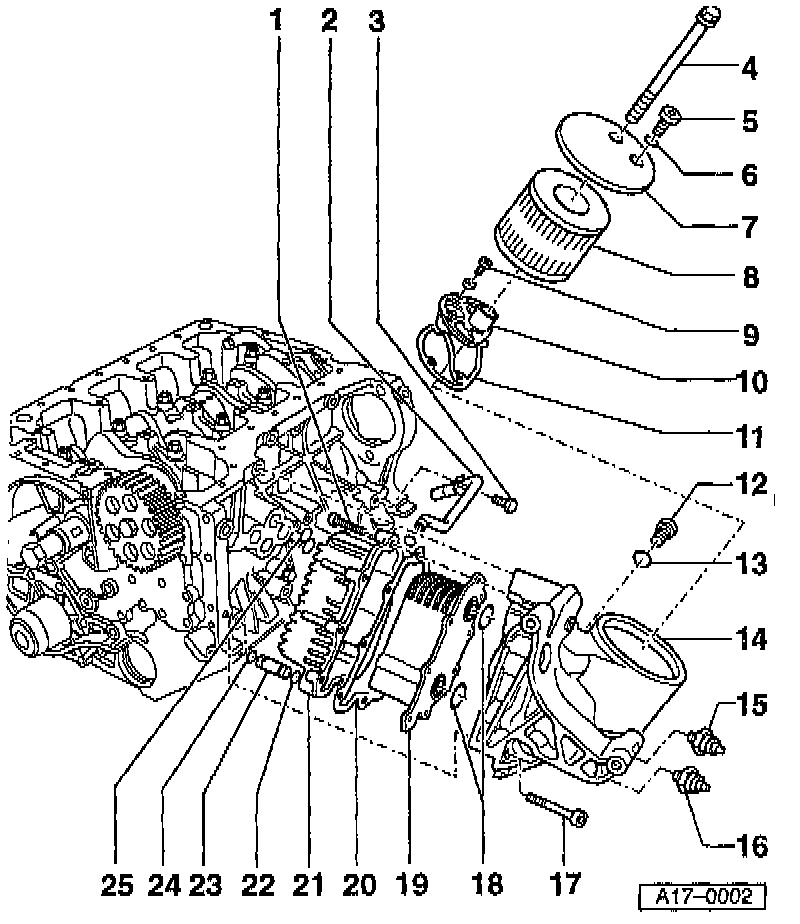

Oil Filter Housing

Legend
1 Bolt
2 Coolant Line
3 Bolt
4 Bolt
5 Bolt
6 Oil Seal
7 Oil Filter Cap
8 Oil Filter Element
9 Bolt
10 Valve Plate
11 Oil Seal
12 Bolt
13 Oil Seal
14 Housing
15 Oil Pressure Switch
16 Oil Pressure Switch
17 Bolt
18 Oil Seal
19 Oil Cooler
20 Oil Seal
21 Housing For Oil Cooler
22 Oil Seal
23 Pipe Fitting
24 Oil Seal
25 Oil Seal

Tightening Specifications
Bolt (1)
- Tighten to: 20 Nm (15 ft. lbs.).

Bolt (3)
- Tighten to: 10 Nm (7 ft. lbs.).

Bolt (4)
- Tighten to: 25 Nm (18 ft. lbs.).

Bolt (5)
- Tighten to: 50 Nm (37 ft. lbs.).

Bolt (9)
- Tighten to: 10 Nm (7 ft. lbs.).

Bolt (12)
- Tighten to: 50 Nm (37 ft. lbs.).

Bolt (17)
- Tighten to: 25 Nm (18 ft. lbs.).
