Dimensions

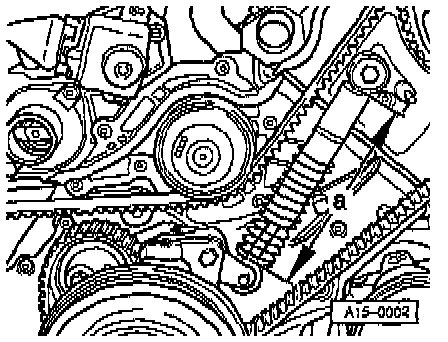

Belt Damper Dimensions





Adjust position of tensioning roller until damper length -a- is within specified range.
Damper length -a-:
Engine cold: 136-139 mm (5.35-5.47 inch).
Engine warm: 126-129 mm (4.96-5.08 inch).
