Check Control Module Versions (Scan Tool Function 01)

Check Control Module Versions (scan tool function 01)
- Connect VAG 1551 Scan Tool (ST) and insert address word 03 "Brake Electronics".
- Press -4 button to advance through program sequence.

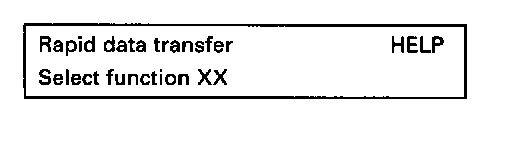

Indicated on display
- Press buttons -0- and -1- to select "Check Control Module Versions" function 01.
- Press -Q- button to confirm input.

Notes:
- The ABS control module version can only be altered by replacing the control module.
- Refer to the parts catalog microfiche for the correct ABS control module -J104- for the vehicle.

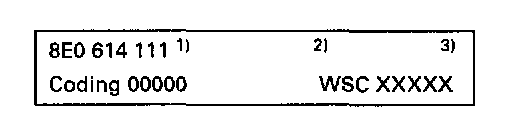

Indicated on display
1) ABS control module Part No.
2) System designation
3) Hardware and software status
The coding is only displayed on vehicles with ASR (traction control); coding control module. Programming and Relearning
The dealership number WSC XXXXX, identifies the dealership which performed the last coding of the ABS control module.

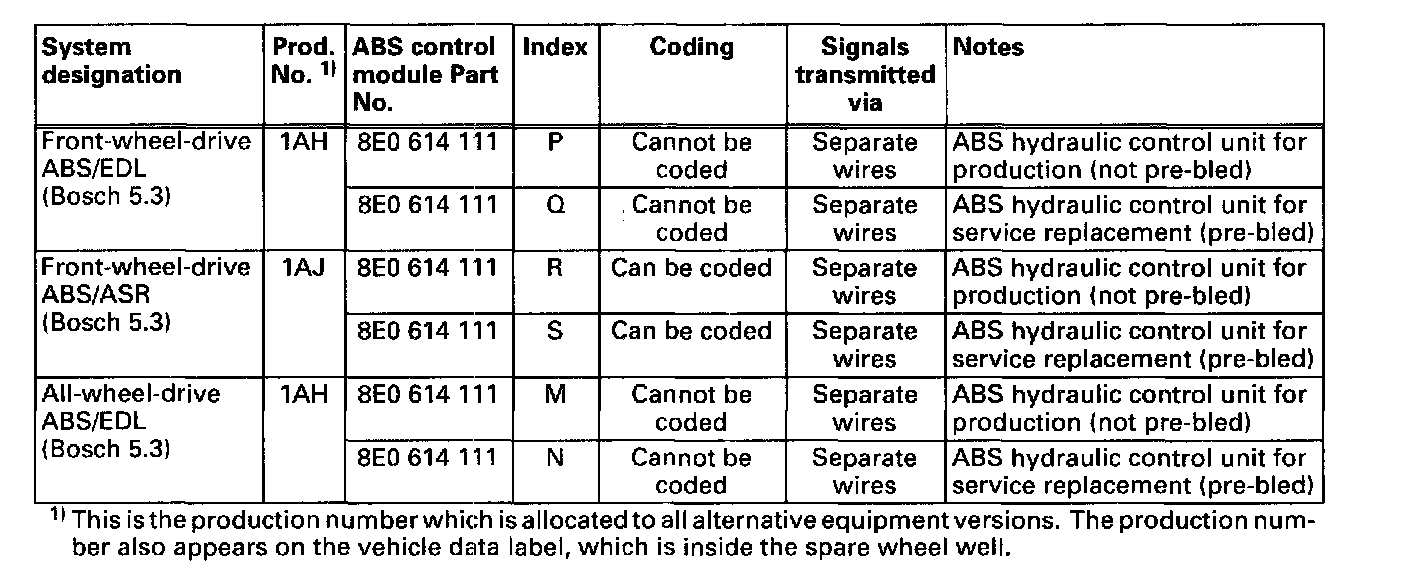

Control Module Versions

CAUTION: Part numbers are listed here for reference only. Always check with your Parts department for the latest information.

- Press -> button.

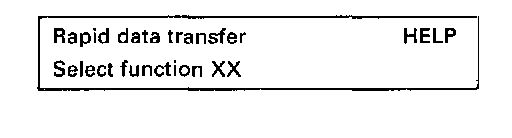

Indicated on display
