Camshaft, Engine

CYLINDER HEAD GASKETS AND COVERS






LEGEND
1. Nut
2. Cylinder Head Cover
3. Gaskets For Cylinder Head Cover
4. Oil Deflector
5. Cylinder Head
6. Gasket For Intake Manifold
7. Cylinder Head Gasket
8. Gasket For Exhaust Manifold
9. Cylinder Head Bolts

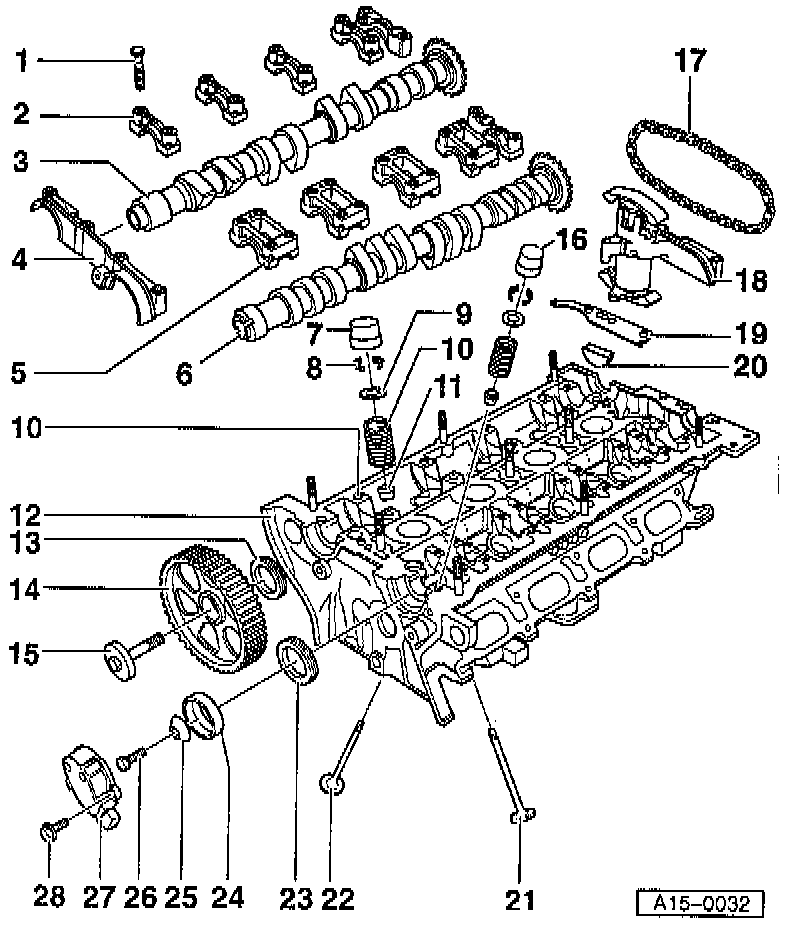

CYLINDER HEAD, CAMSHAFTS AND VALVE COMPONENTS





LEGEND
1. Bolt
2. Exhaust Camshaft Bearing Cap
3. Exhaust Camshaft
4. Bearing Cap
5. Intake Camshaft Bearing Cap
6. Intake Camshaft
7. Hydraulic Valve Lifters
8. Valve Keepers
9. Valve Spring Retainer
10. Valve Spring
11. Valve Stem Oil Seal
12. Cylinder head
13. Oil Seal
14. Camshaft Drive Sprocket
15. Bolt
16. Hydraulic Valve Lifters
17. Drive Chain
18. Hydraulic Chain Tensioner
19. Rubber-Metal Gasket
20. Gasket
21. Intake Valve
22. Exhaust Valve
23. Oil Seal
24. Sensor Plate For Camshaft Position (CMP) Sensor
25. Conical Washer
26. Bolt
27. CMP Sensor
28. Bolt
