Air Flow Meter/Sensor: Service and Repair

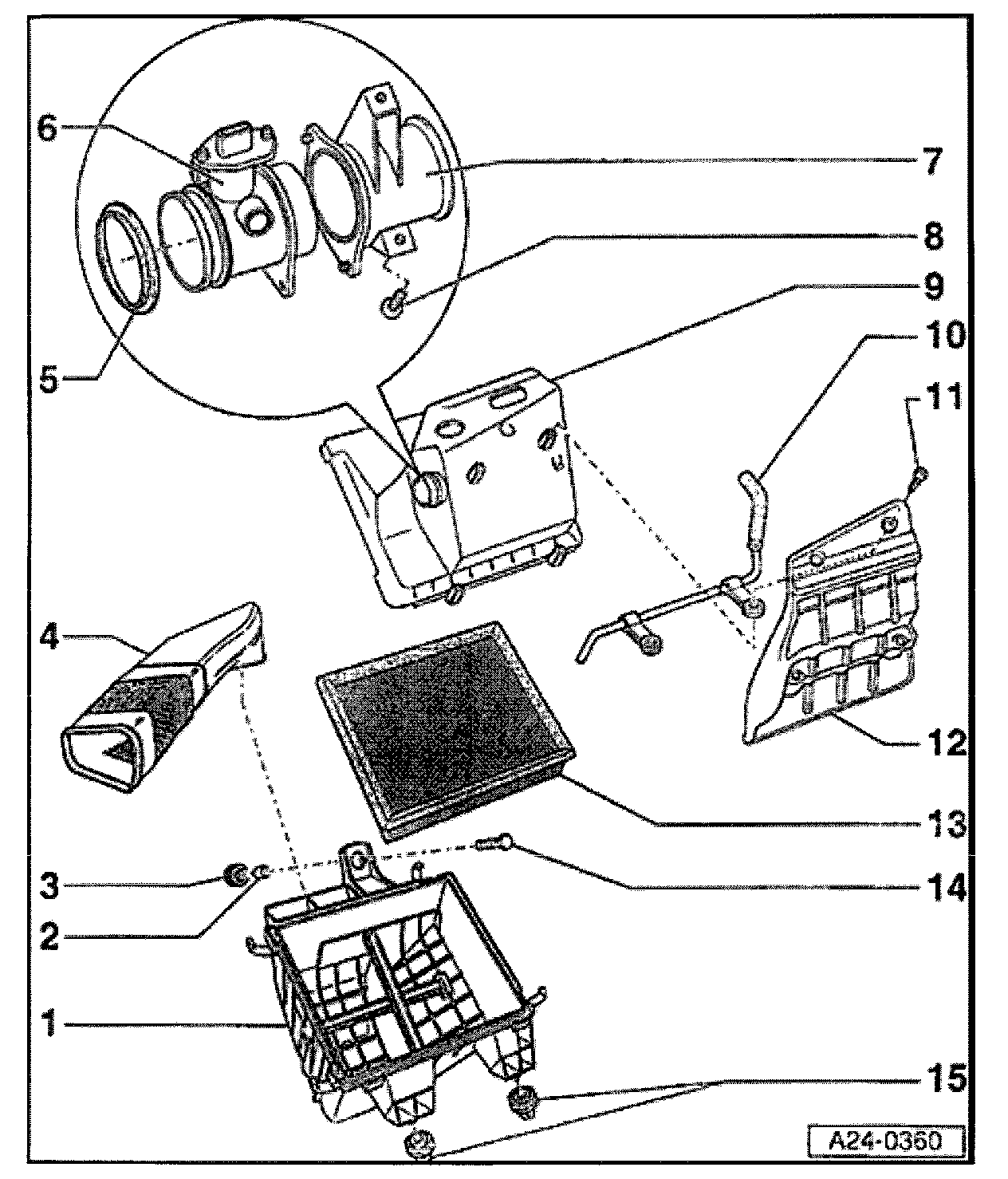

Air Cleaner, Disassembling And Assembling

1 - Lower part of air cleaner housing
2 - Sleeve
3 - Rubber grommet
4 - Air duct
- to metering unit
5 - Seal
6 - Mass Air Flow (MAF) sensor -G70-
7 - Air duct
8 - 6 Nm
9 - Upper part of air cleaner housing
10 - Wire
- For EVAP canister system
11 - 10 Nm
12 - Heat shield
13 - Filter element
- Follow filter change intervals
14 - 10 Nm
15 - Rubber grommet
