Front Cross-Member: Service and Repair

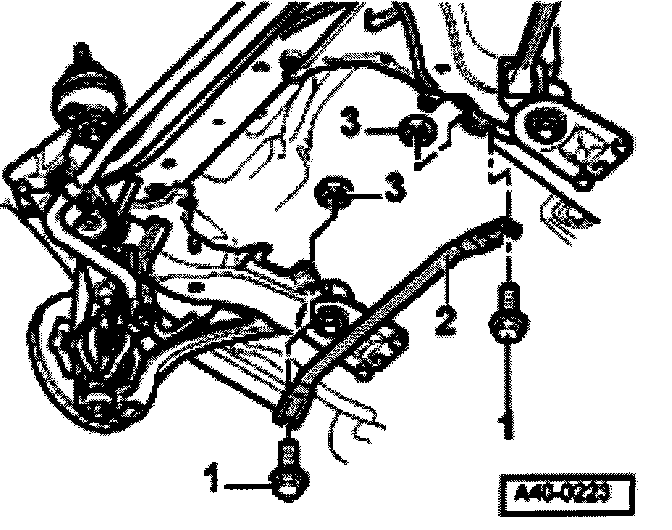

Lower cross member, removing and installing From m.y. 1998 various subframes (refer to parts supplier) are equipped with a lower cross member.
1.
Bolts M10 x 22
Tightening torque:
40 Nm (30 ft. lbs.) +1/4-turn (90°) 2.
Cross member
3.
Nuts
