Cruise Control: Adjustments

4-Cylinder Engines







Depending on the engine, only the installation position of the linkage varies in the different 4-cylinder engines.
Follow the sequence of operations below:
- Start engine and allow to idle (throttle valve at idle).
- Screw in linkage -2- up to stop and then turn back one turn (360° ± 90°).

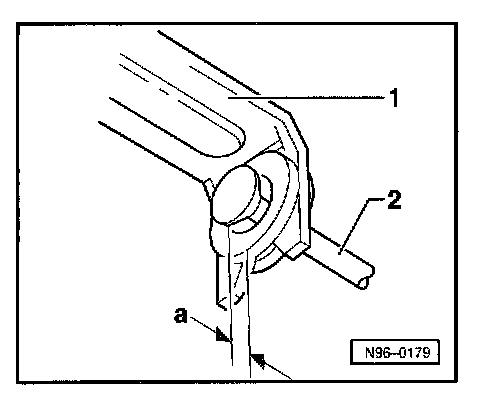

The play -a- between linkage -2- and actuator -1- must be 0.5-1.0 mm.
- Secure linkage from moving (locknut).

6-Cylinder Engines







The adjustment is the same as on the 4-cylinder engine.

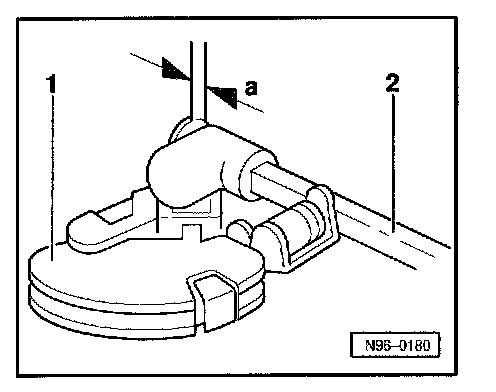

The play -a- between linkage -2- and the stop plate on cam plate -1- must be 0.5-1.0 mm.
- Secure linkage from moving (locknut).
