Front Door Panel

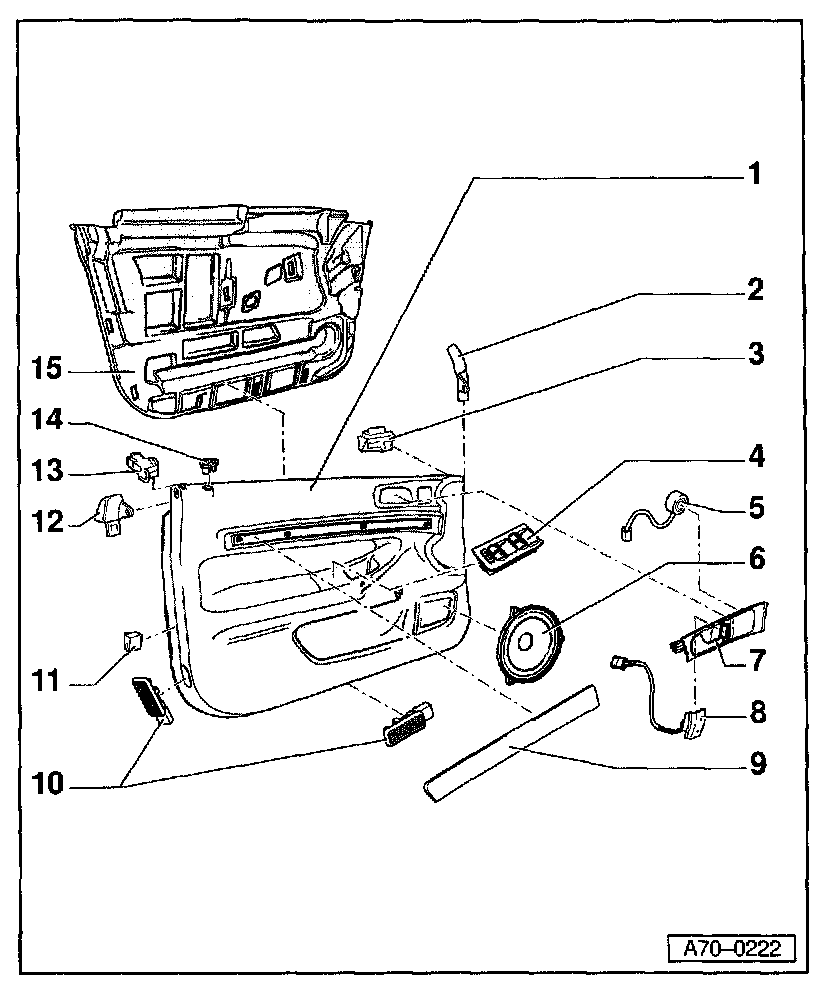

Front door trim Component locations, overview 1 -
Door trim
2 -
Outer connecting piece
3 -
Outer filler piece
4 -
Power window switch insert
5 -
Speaker (tweeter)
6 -
Speaker (woofer)
7 -
Interior door handle
8 -
Central door locking switch
9 -
Trim
10 -
Door warning and footwell lights
11 -
Detent notch base
12 -
Inner connecting piece
13 -
Inner filler piece
14 -
Door knob guide
15 -
Front door trim insulation
