System Diagram

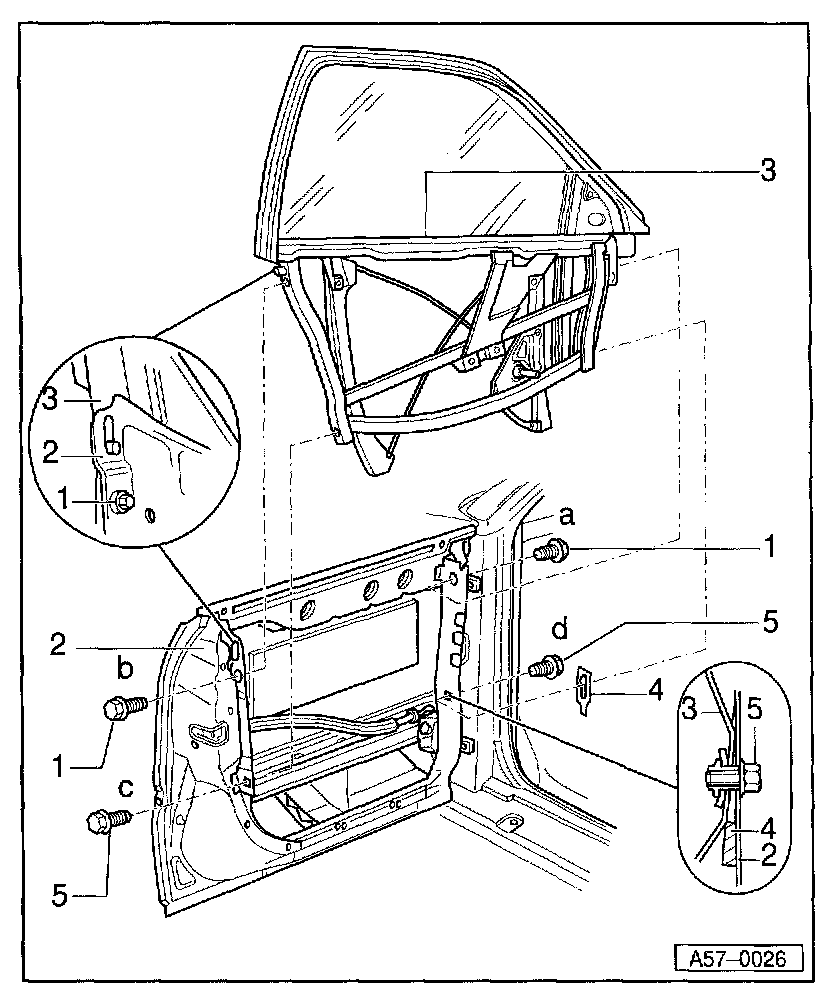

Front door and door component carrier, removing and installing

1 - Hex bolts (2x)
2 - Front door
3 - Door component carrier
4 - Adjusting plate
5 - Bolts (2x)
6 - Bowden cable
7 - Carrier
8 - Window guide
