Radiator Support

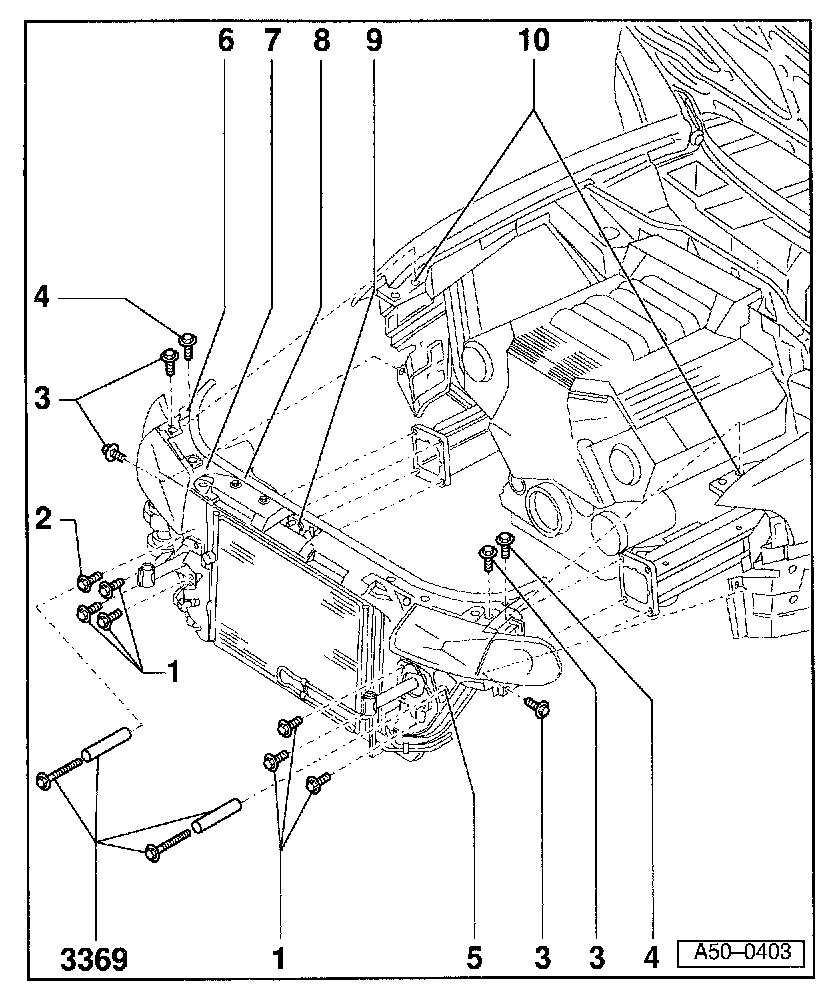

Lock carrier with attachments, assembly overview 1.
Combination bolt
45 Nm (33 ft lb) 2.
Combination bolt
45 Nm (33 ft lb) 3.
Combination bolt
10 Nm (7 ft lb) 4.
Combination bolt
10 Nm (7 ft lb) 5.
Access hold for special tool
6.
Cowl attachment hole
7.
Lock carrier
8.
Hood seal
9.
Hood lock cable
10.
Hole in side panel
