Evaluating Display Group 001




Display group 001: Compressor cut-off conditions, voltage for A/C clutch drive, voltage at terminal "15", and signal for "ignition off" period


NOTE:
- Display group 1 indicates current compressor cut-off conditions.
- For vehicles with an A/C control head with one display and part number 8D0 820 043 after index "M" the last four compressor cut-off conditions that were effective for more than 20 seconds are indicated in display group 011.

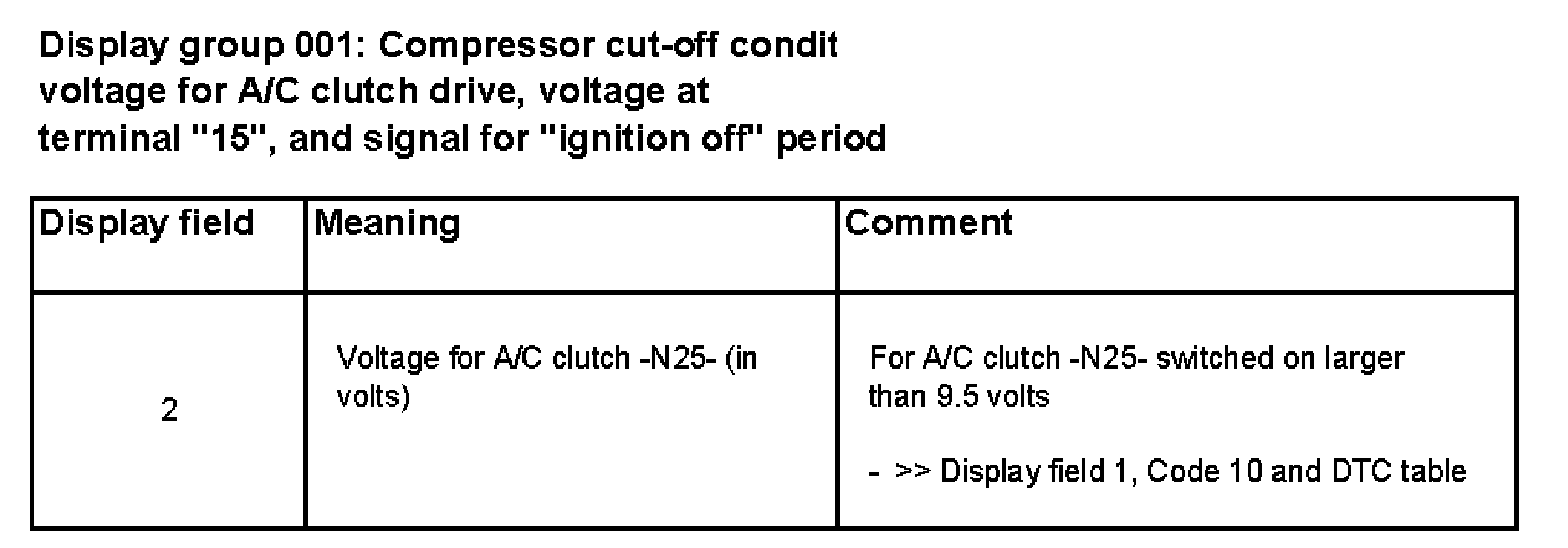

Display Field 2:
