Evaluating Display Group 012




Display group 12: Idle RPM increase, activation coolant fan, ignition key coding


NOTE:
- Display group "012" is only valid for A/C control heads with part number 8D0 820 043 after index "M" (version with one display).
- Since an immobilizer is not being offered in the USA at this time, it is not possible to adapt an ignition key for these vehicles.

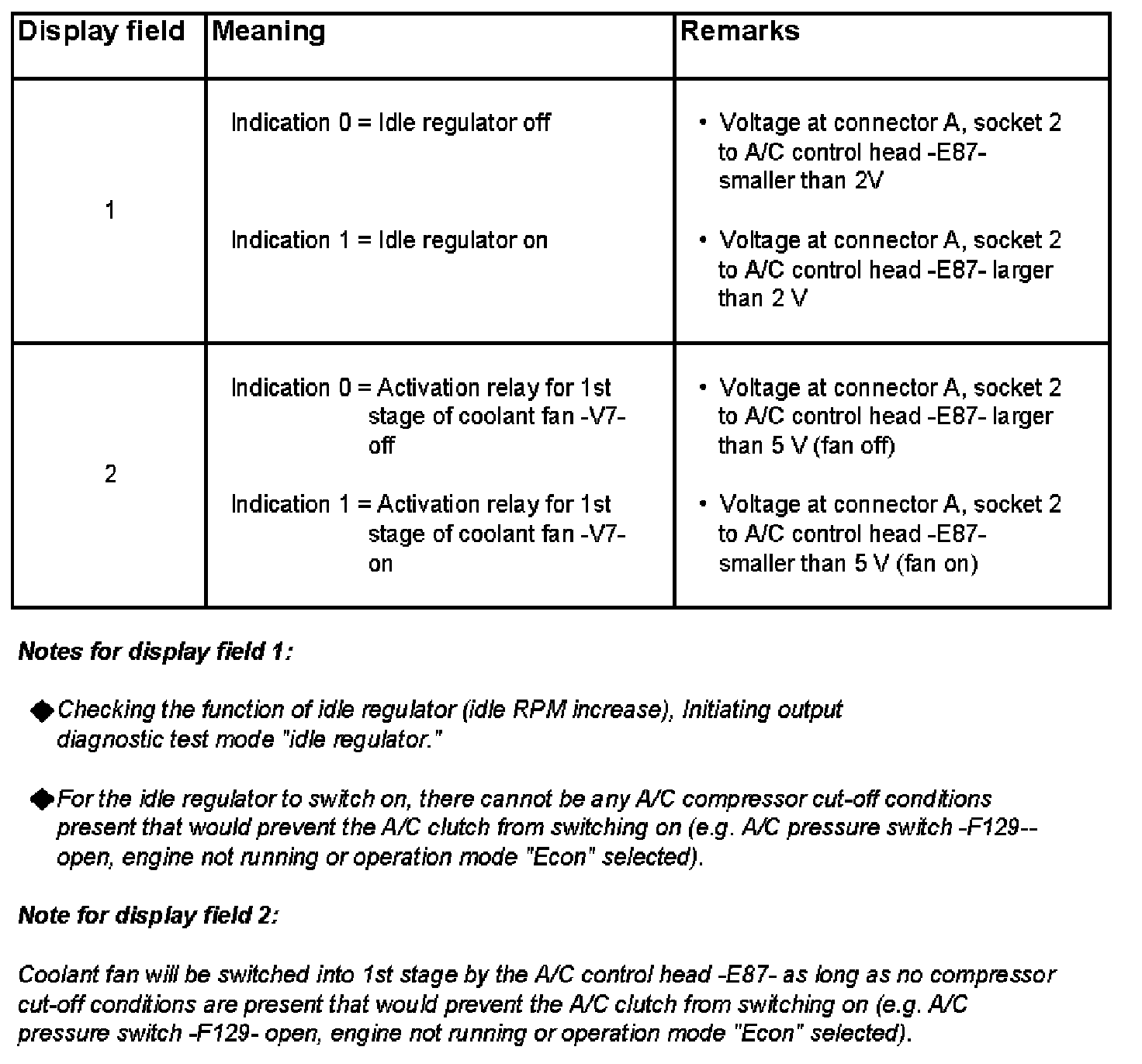

Display Field 1 - 2:

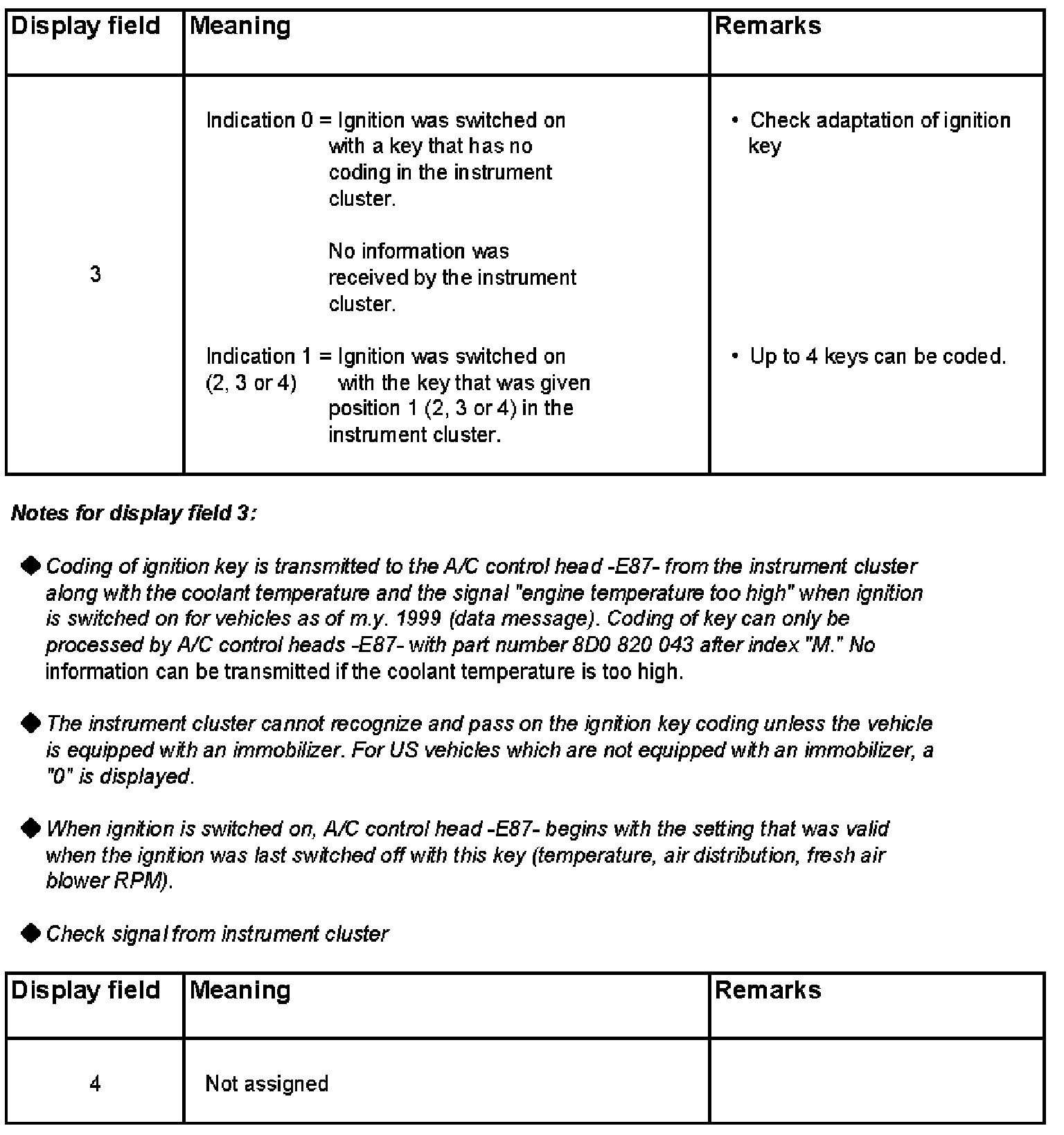

Display Field 3, 4:
