Headlamp Alignment Control Module: Service and Repair



Automatic Vertical Aim Control System Control Module -J431-, Replacing

Removing

- Remove rear seat bench, refer to Body and Frame - Seats - Service and Repair - Procedures [1][2]Procedures

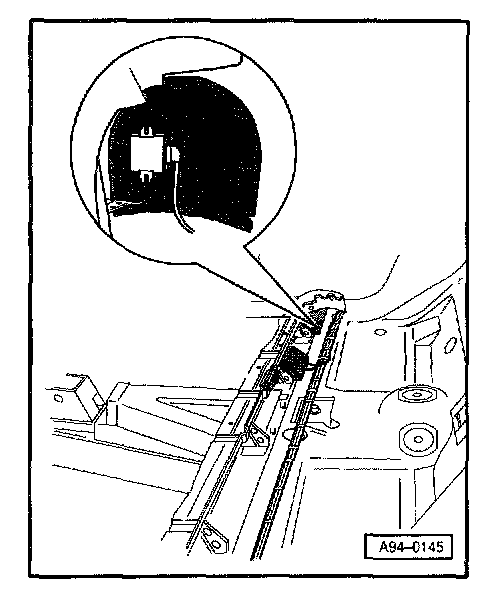

The control module for automatic headlight aim control is in a foam plastic housing in the right corner under the rear seat.

- Carefully pull housing forward and unfold it.
- Remove automatic vertical aim control system control module -J431- and disconnect harness connector.

Installing

- Install in reverse order of removal.
