Front Axle Toe-In, Setting

Front Axle Toe-In, Setting

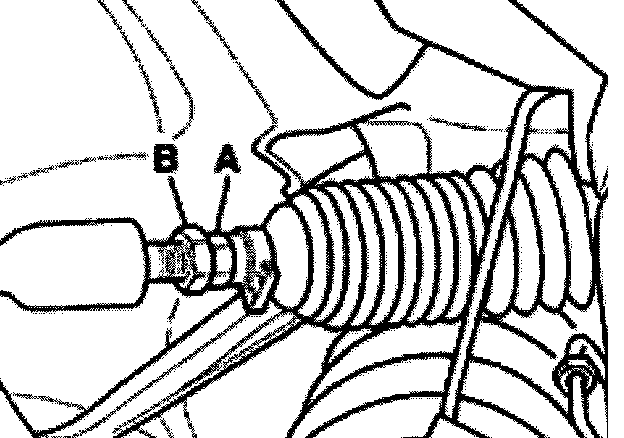

- Loosen lock nut -B-.

- Adjust toe on left and right at hex -A-.

Make sure that the boots are not twisted after turning the tie rods

Note: Twisted boots will wear out quickly.

- Tighten lock nut -B- and check toe-in again.
Tightening torque: 40 Nm (30 ft. lbs.)
After tightening lock nut -B- it is possible that the toe value may deviate slightly.
If the measured toe lies within the tolerances, the adjustment is correct.
