Data Link Connector: Locations

5 Speed Automatic 01V

Electrical/Electronic Components And Locations

Data Link Connector (DLC)

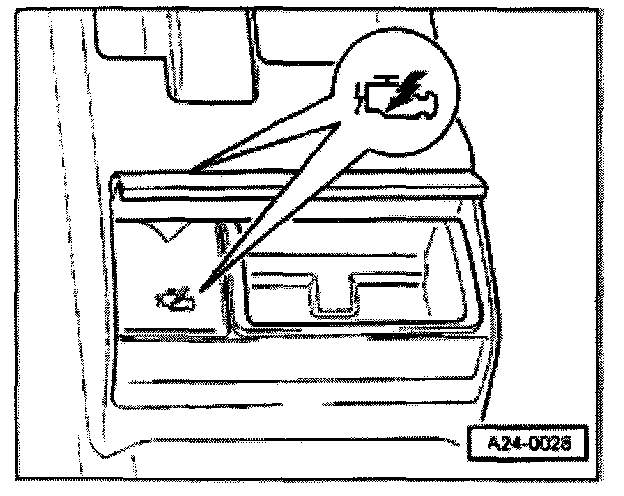

Location: Up to m. y. 2000, the Data Link Connector (DLC) is located under the rear ashtray (center console).

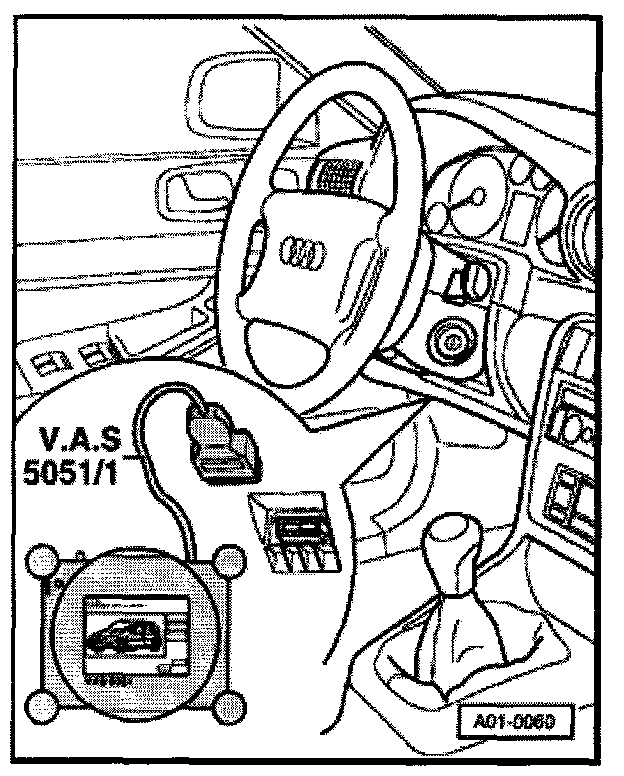

As of m. y. 2001, the DLC is located under the kneebar left of the steering wheel.

- Connect VAS5051 tester with VAS5051/1 diagnostic wire, or connect V.A.G 1551 Scan Tool with VAG1551/3 adapter.
- Enter address word "02 transmission electronics" and continue switching until "selecting function XX" appears on display.
