Evaluating Display Group 004

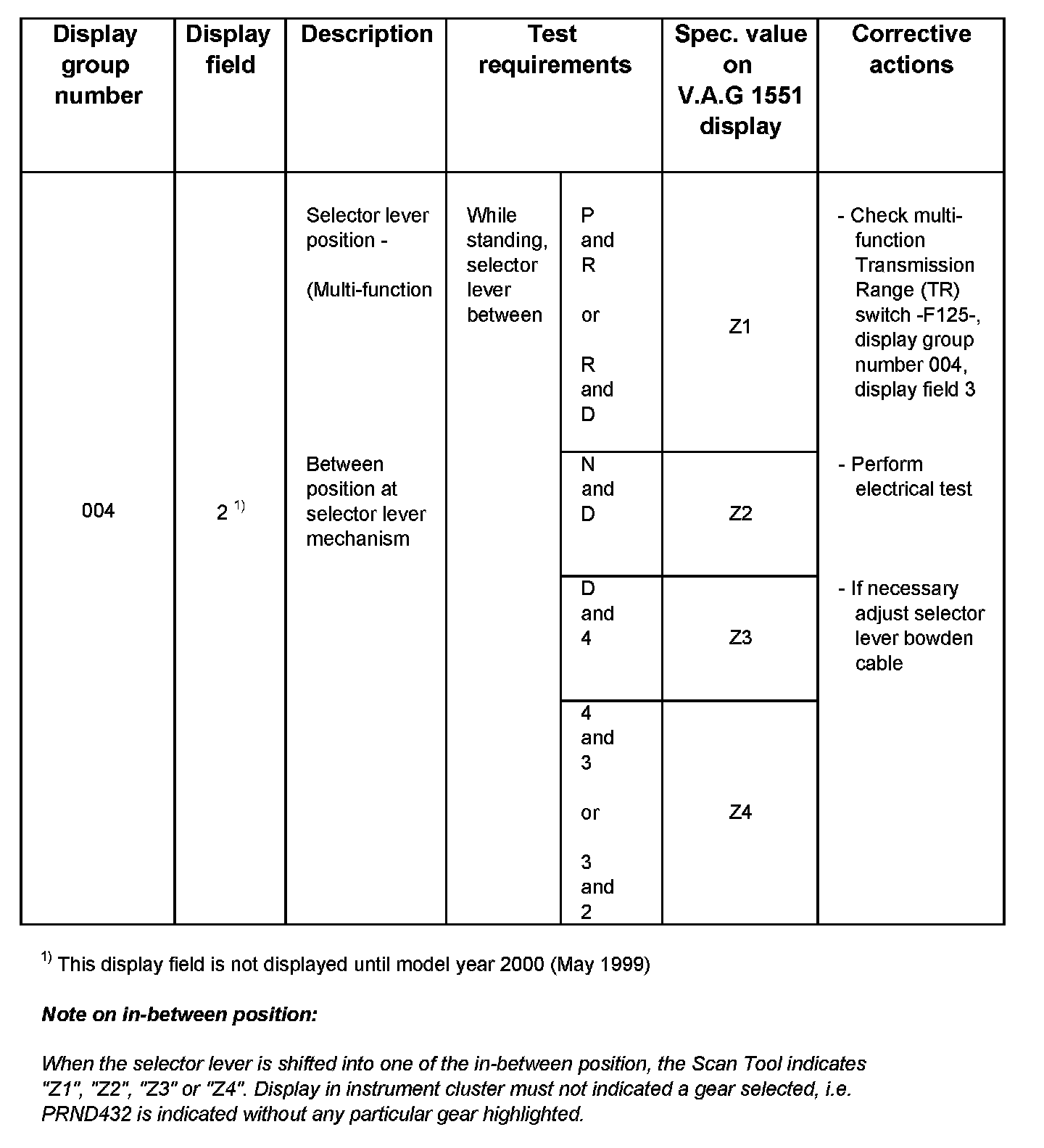

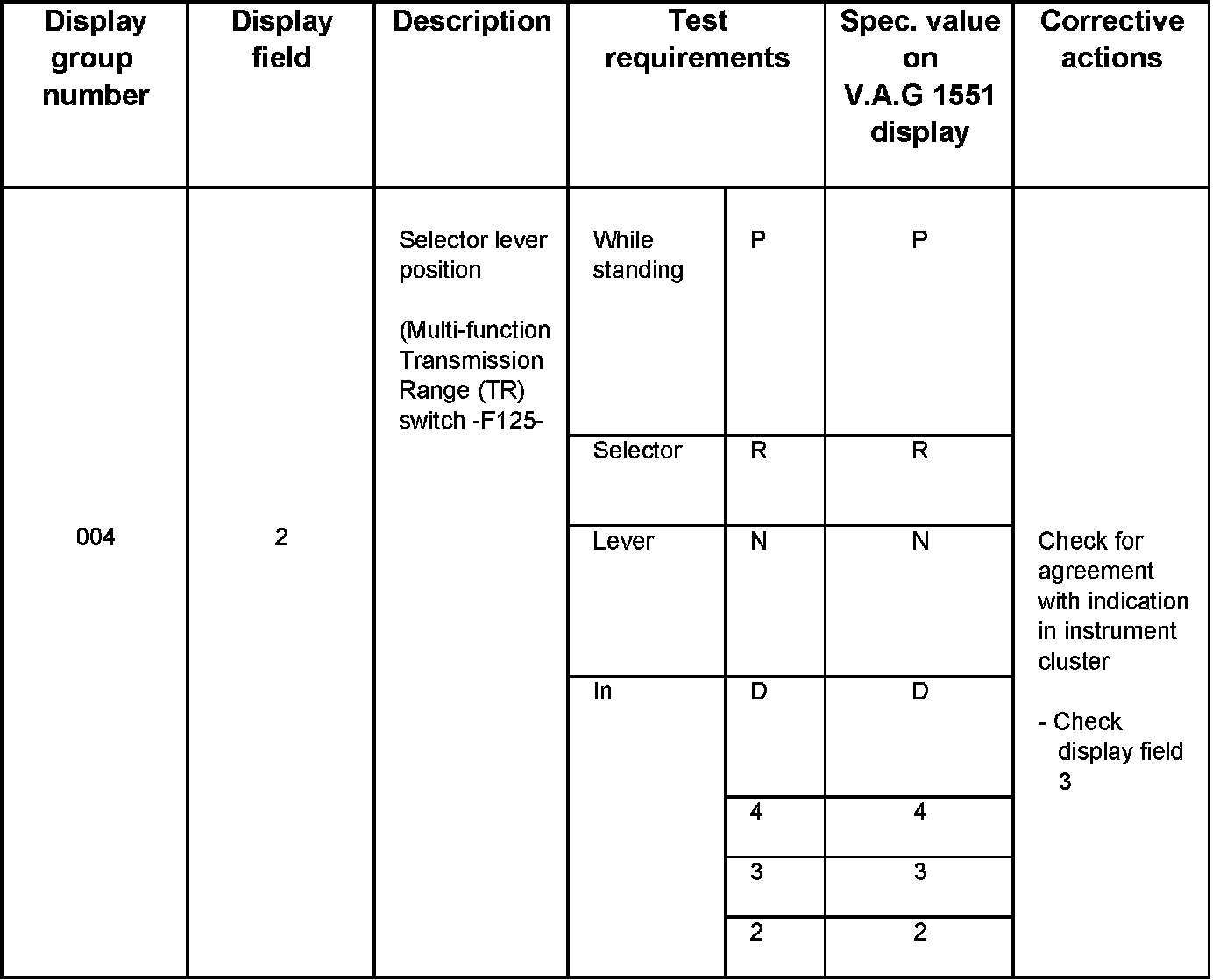

Display Group 004Display Group 004 Part 1:
Display Group 004 Part 2:
Display Group 004 Part 3:
Display Group 004 Part 4:

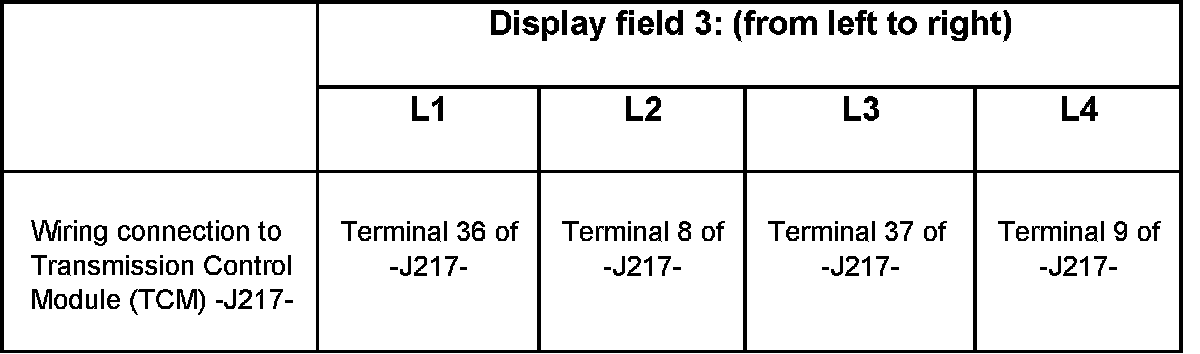

Notes for display field 3 of display group number 004: -
The input signals of the Multi-function Transmission Range (TR) switch -F125- can be checked at the Transmission Control Module (TCM).
Display Group 004 Part 5:
