Vehicle Speed Sensor: Service and Repair



Speedometer Vehicle Speed Sensor (VSS) -G22-and Sensor Drive Gear, Removing And Installation

- Transmission installed

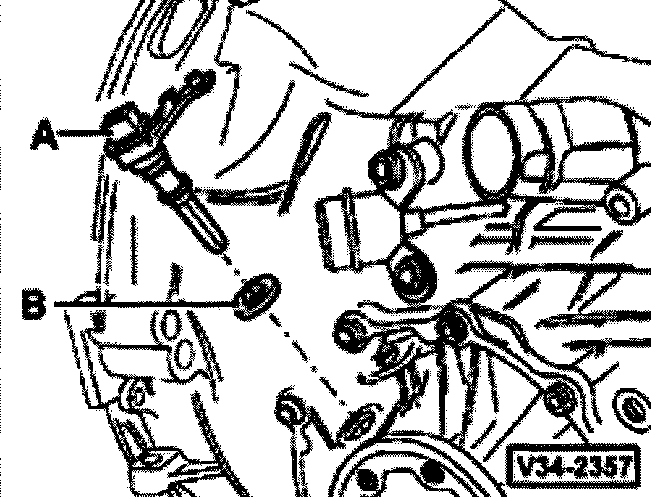

Vehicle Speed Sensor (VSS) -G22-, Removing And Installing

Removing






- Disconnect harness connector at Vehicle Speed Sensor (VSS) -A-.

- Press retaining clip down, turn sensor sideways and remove upward.

Installing

- Replace O-ring -B-.

- Install sensor and lock into place.

- Handle sensor carefully. If damaged, speed readings may not be correct.
