Air Bag Control Module: Locations

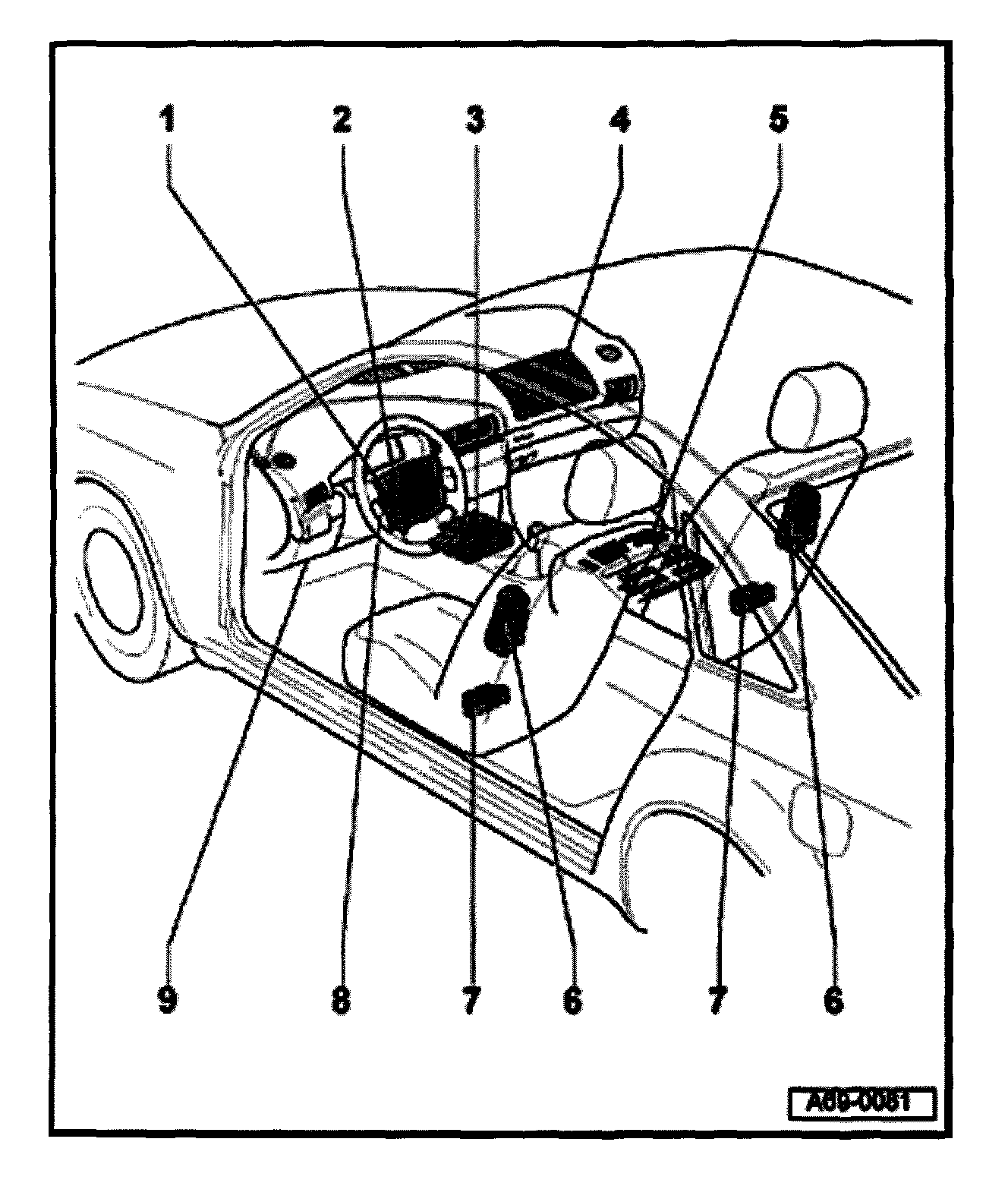

Airbag Component Locations, Overview 1 - Driver-side airbag unit 2 - Driver-side airbag unit (sport steering wheel) 3 - Airbag control module -J234- 4 - Passenger-side airbag unit -
Locking and activating (adaptation)
5 - Seat occupant sensor 6 - Side airbag 7 - Crash sensor for side airbag 8 - Spiral spring 9 - Data Link Connector (DLC)
