Transmission Removing and Installing

Transmission Removing and Installing

Tightening Torques

Transmission To Engine






A: Dowel Sleeves

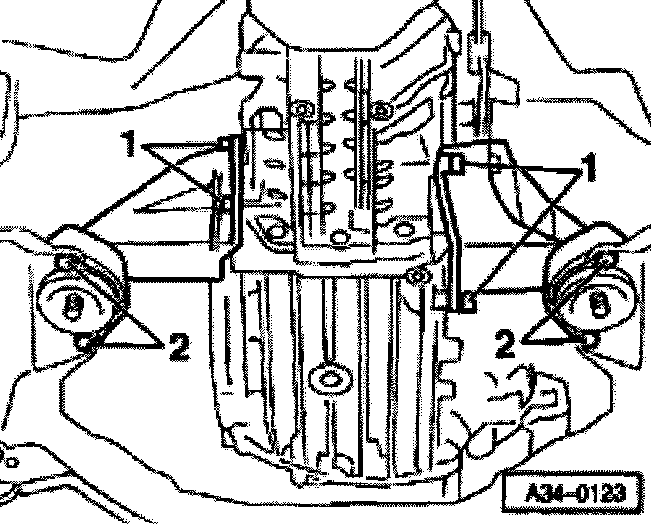

Transmission/Engine Assembly Mount










Component Tightening torque

Drive Axle to Flange Shaft

- M8 40 Nm (30 ft. lb.)

- M10 77 Nm (57 ft. lb.)

Engine Speed (RPM) Sensor -G28- 10 Nm (7 ft. lb.)

Clutch Slave Cylinder to Transmission

- Socket-head Bolt (1) 20 Nm (15 ft. lb.)

- Bolt (2) 25 Nm (18 ft. lb.)

Heat Shields Over Drive Axles to Transmission 23 Nm (17 ft. lb.)

Shift Rod to Transmission (1) 20 Nm (15 ft. lb.)

Pivot Rod to Transmission 40 Nm (30 ft. lb.)

Three Way Catalytic Converter (TWC) to Mounts 25 Nm (18 ft. lb.)

Front Exhaust Pipe to Turbocharger or Exhaust Manifold 25 Nm (18 ft. lb.)

Clamp for Exhaust Pipe 40 Nm (30 ft. lb.)

Bracket for Noise insulation Panel to Body 10 Nm (2 ft. lb.)

- (1) Always replace bolt.

- (2) Coat with locking fluid D 185 400 A2 before installing.
