System Specifications

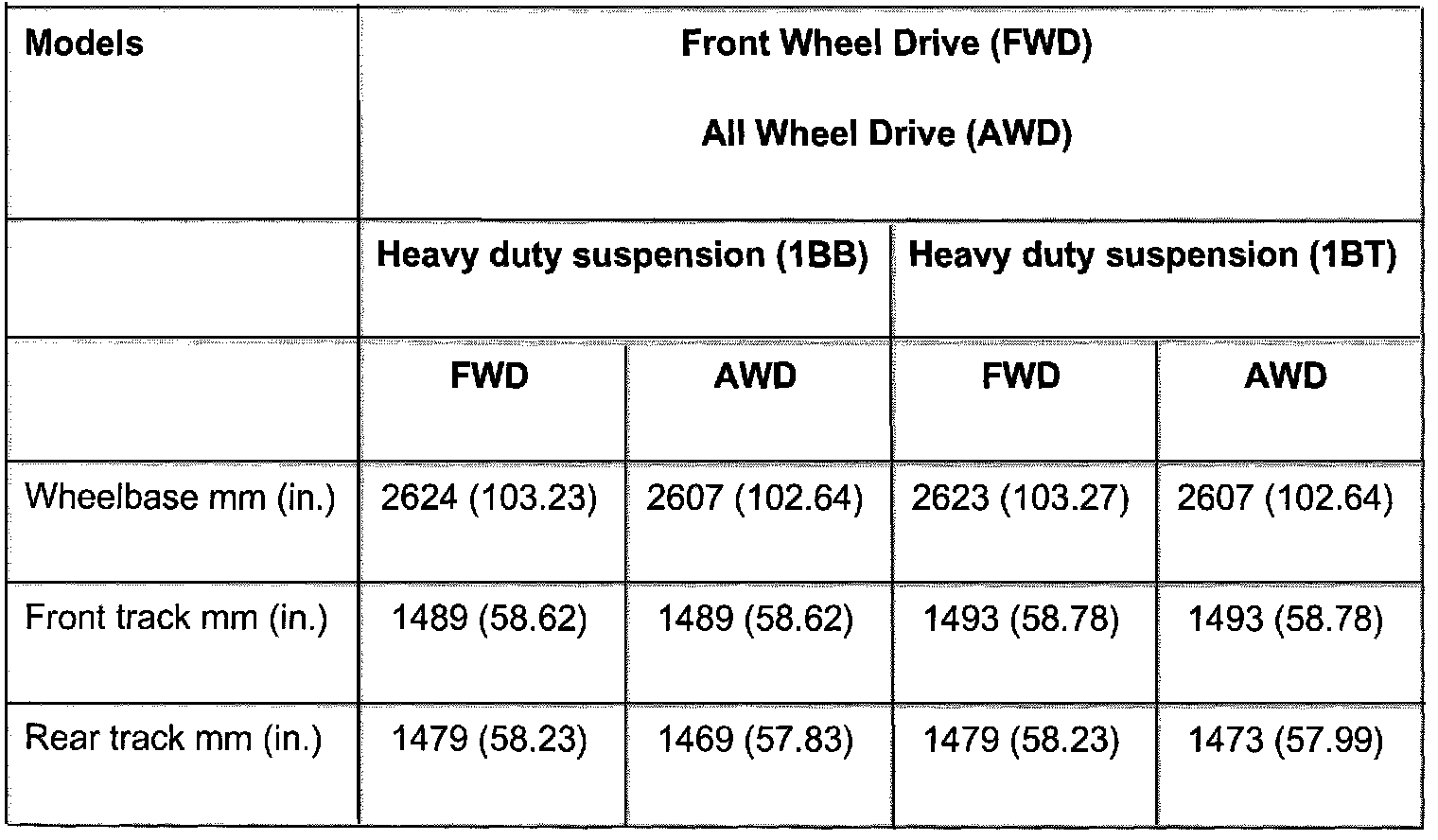

Technical data, Suspension (Part 1 Of 2):

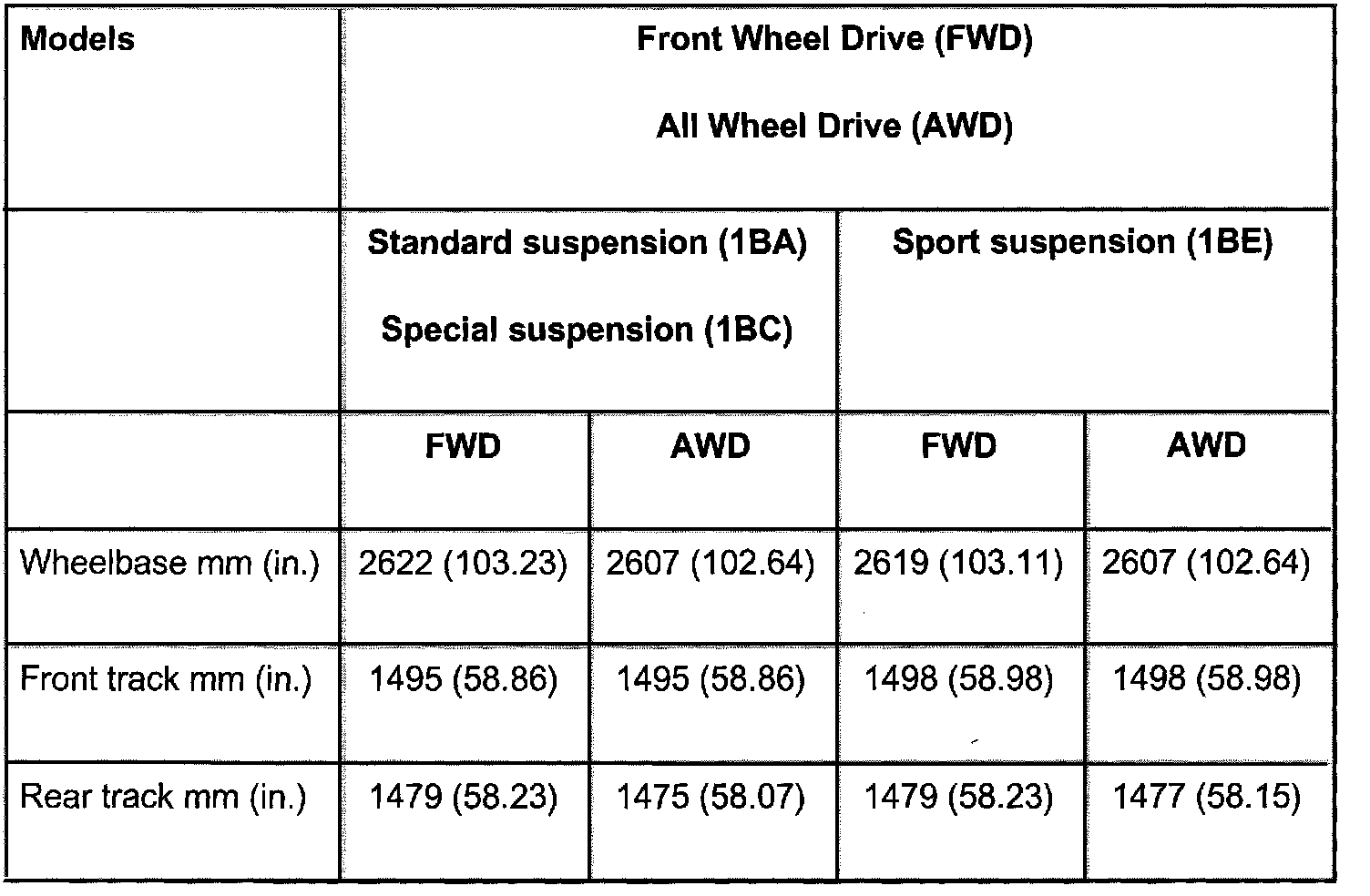

Technical data, Suspension (Part 2 Of 2):

Steering Gear (Part 1 Of 1):

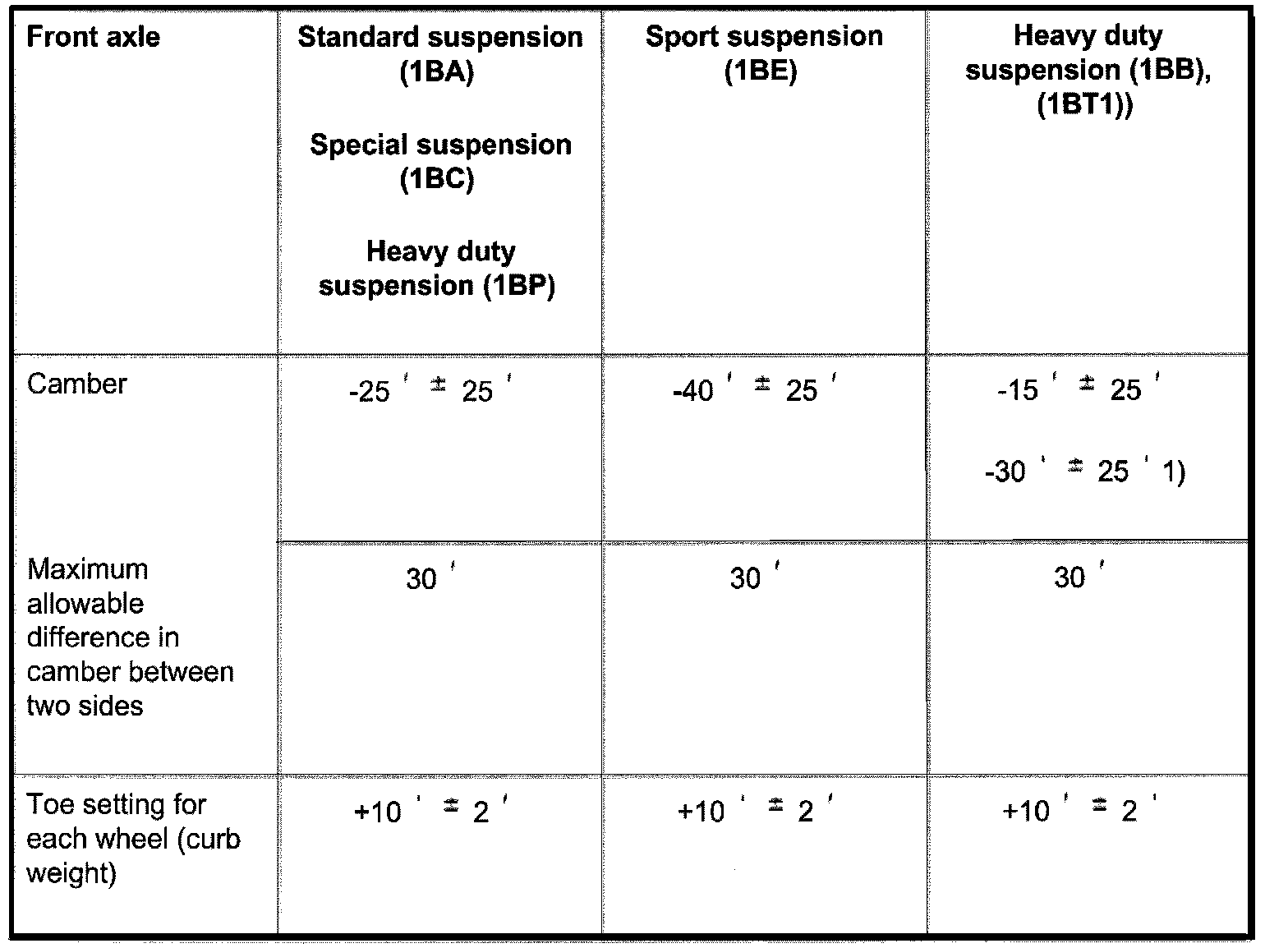

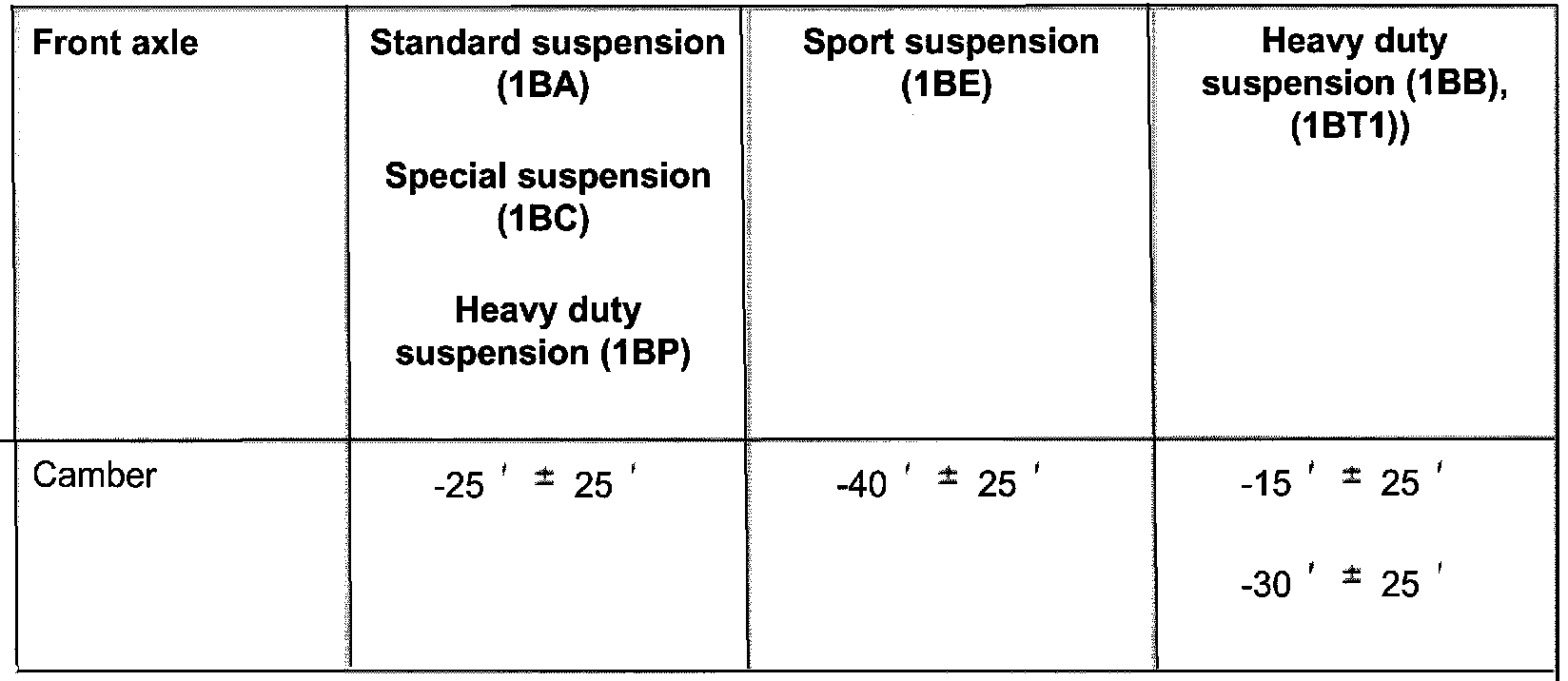

Wheel Alignment Specifications Front Wheel Drive (FWD), Front Axle Without Aluminium Mounting Bracket (Part 1 Of 2):

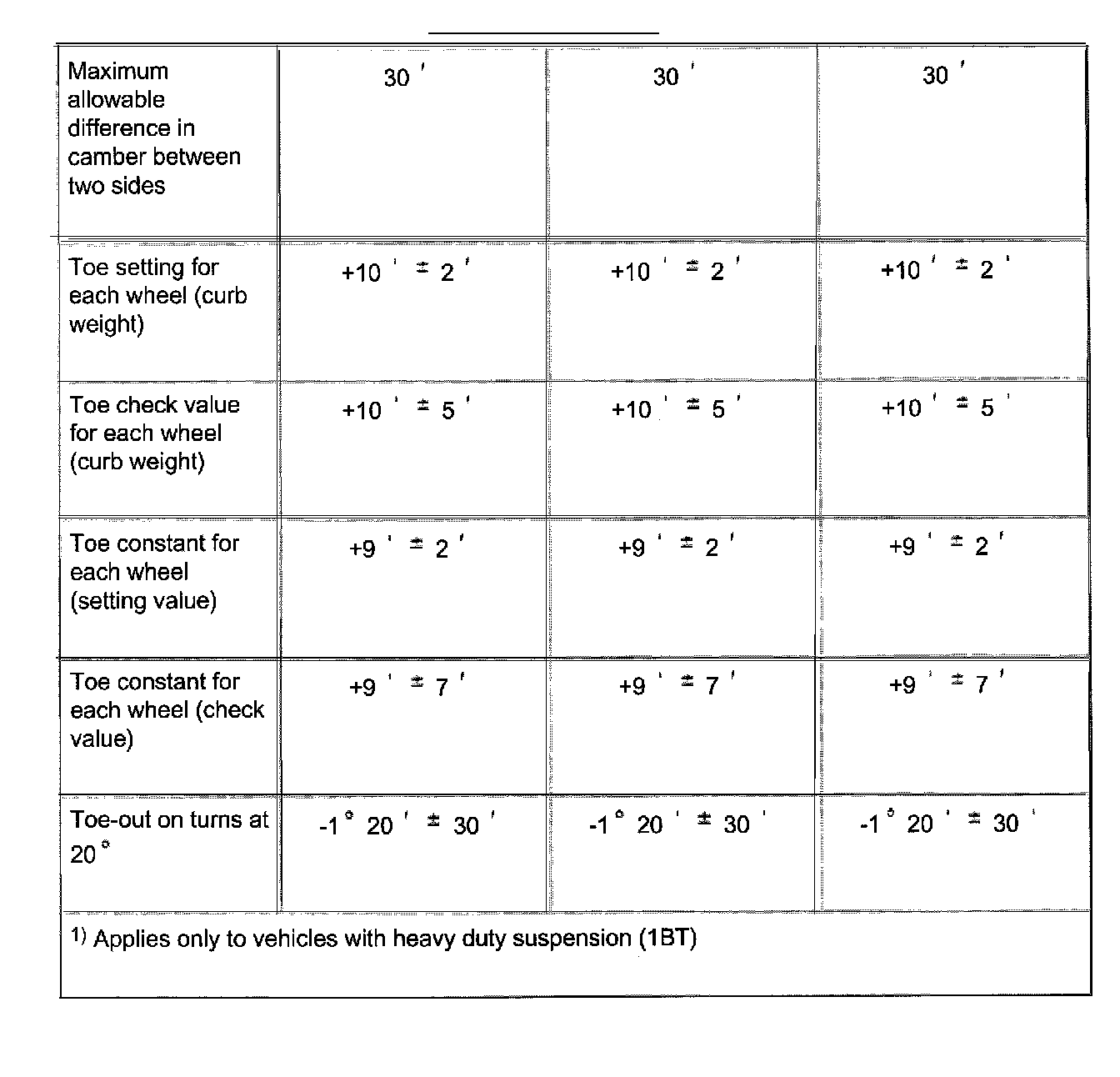

Wheel Alignment Specifications Front Wheel Drive (FWD), Front Axle Without Aluminium Mounting Bracket (Part 2 Of 2):

Wheel Alignment Specifications Front Wheel Drive (FWD), Front Axle With Aluminium Mounting Bracket (Part 1 Of 2):

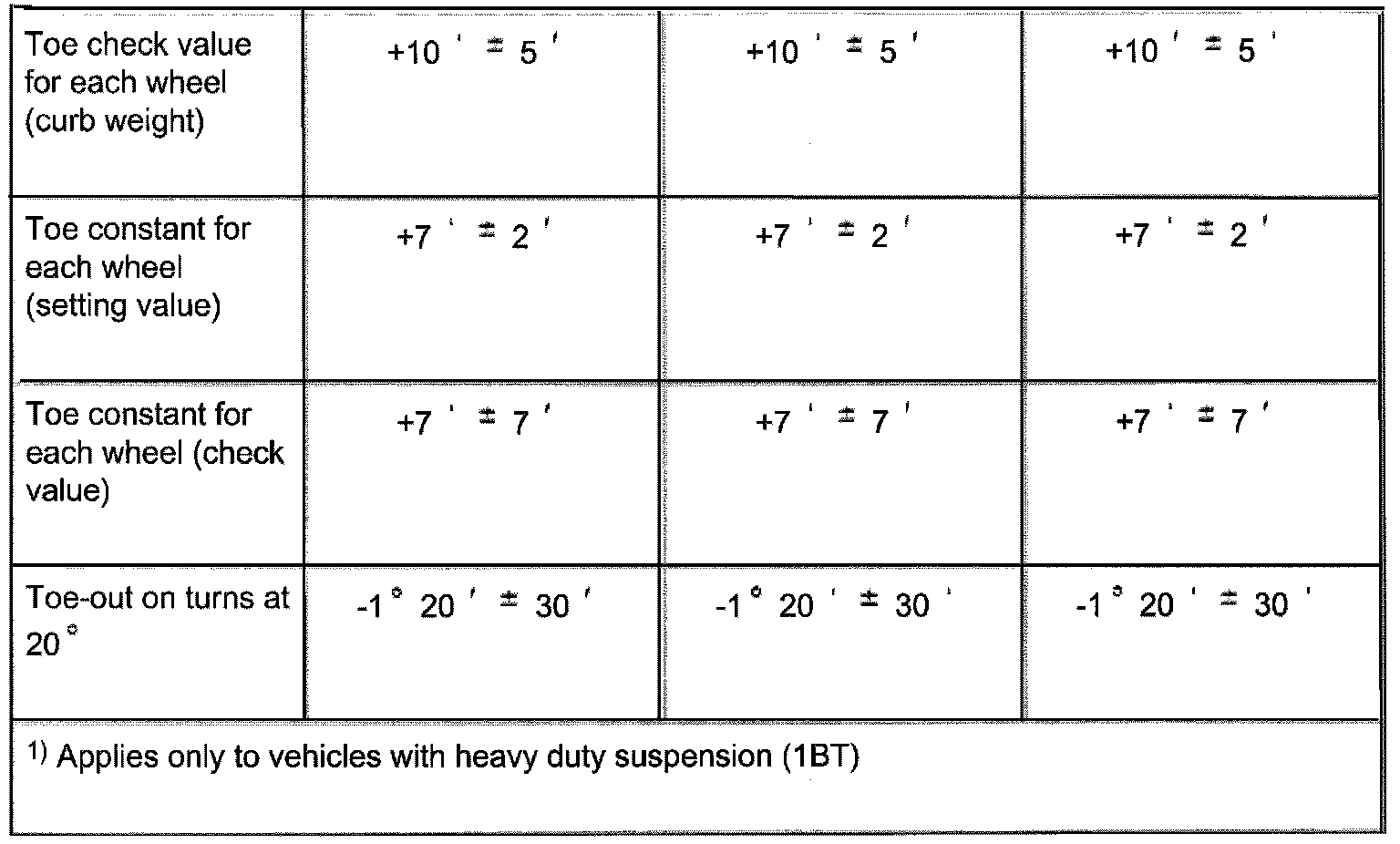

Wheel Alignment Specifications Front Wheel Drive (FWD), Front Axle With Aluminium Mounting Bracket (Part 2 Of 2):

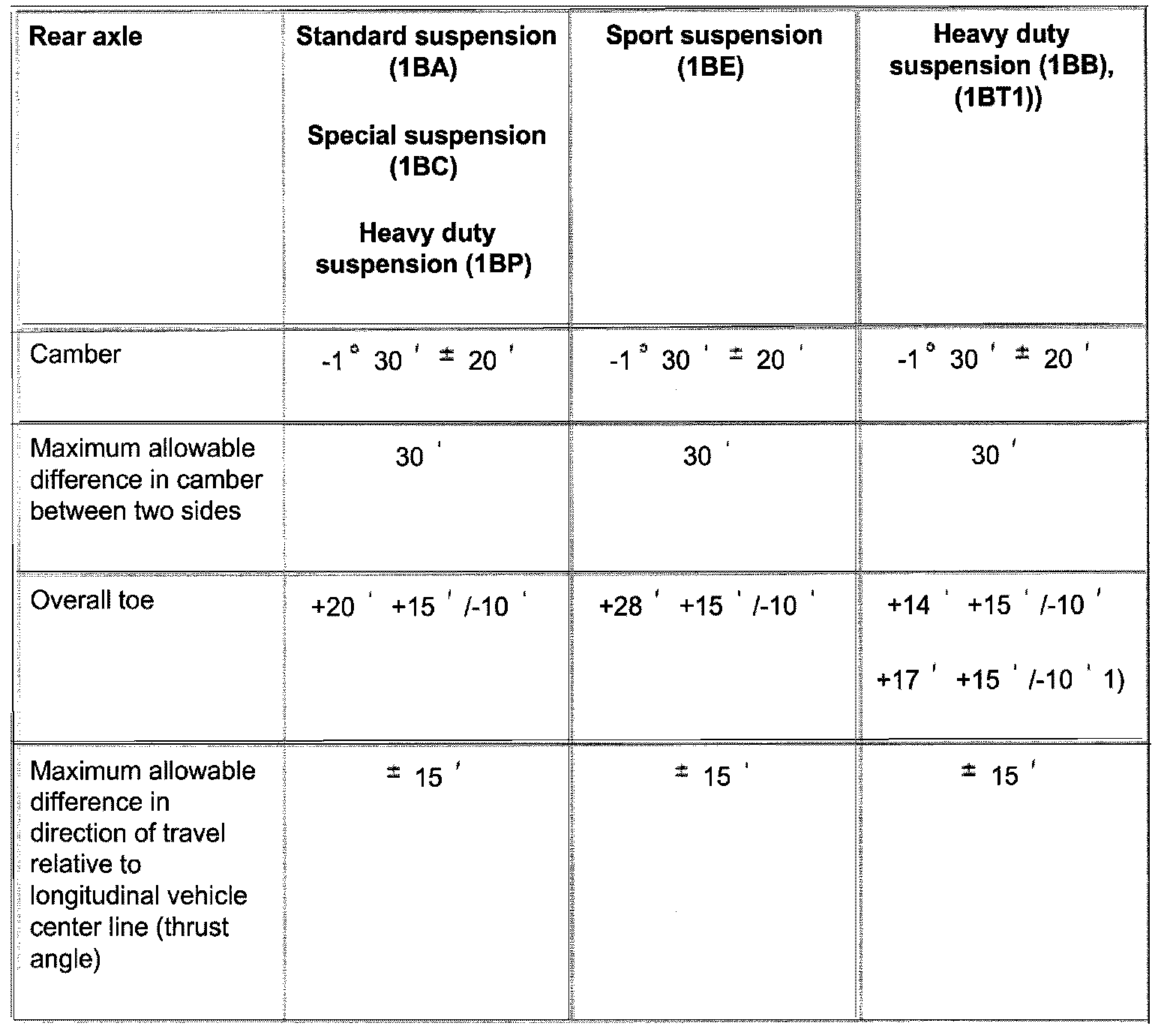

Wheel Alignment Specifications Front Wheel Drive (FWD),Rear Axle (Part 1 Of 2):

Wheel Alignment Specifications Front Wheel Drive (FWD), Rear Axle (Part 2 Of 2):

Wheel Alignment Specifications All Wheel Drive (AWD), Front Axle Without Aluminium Mounting Bracket (Part 1 Of 2):

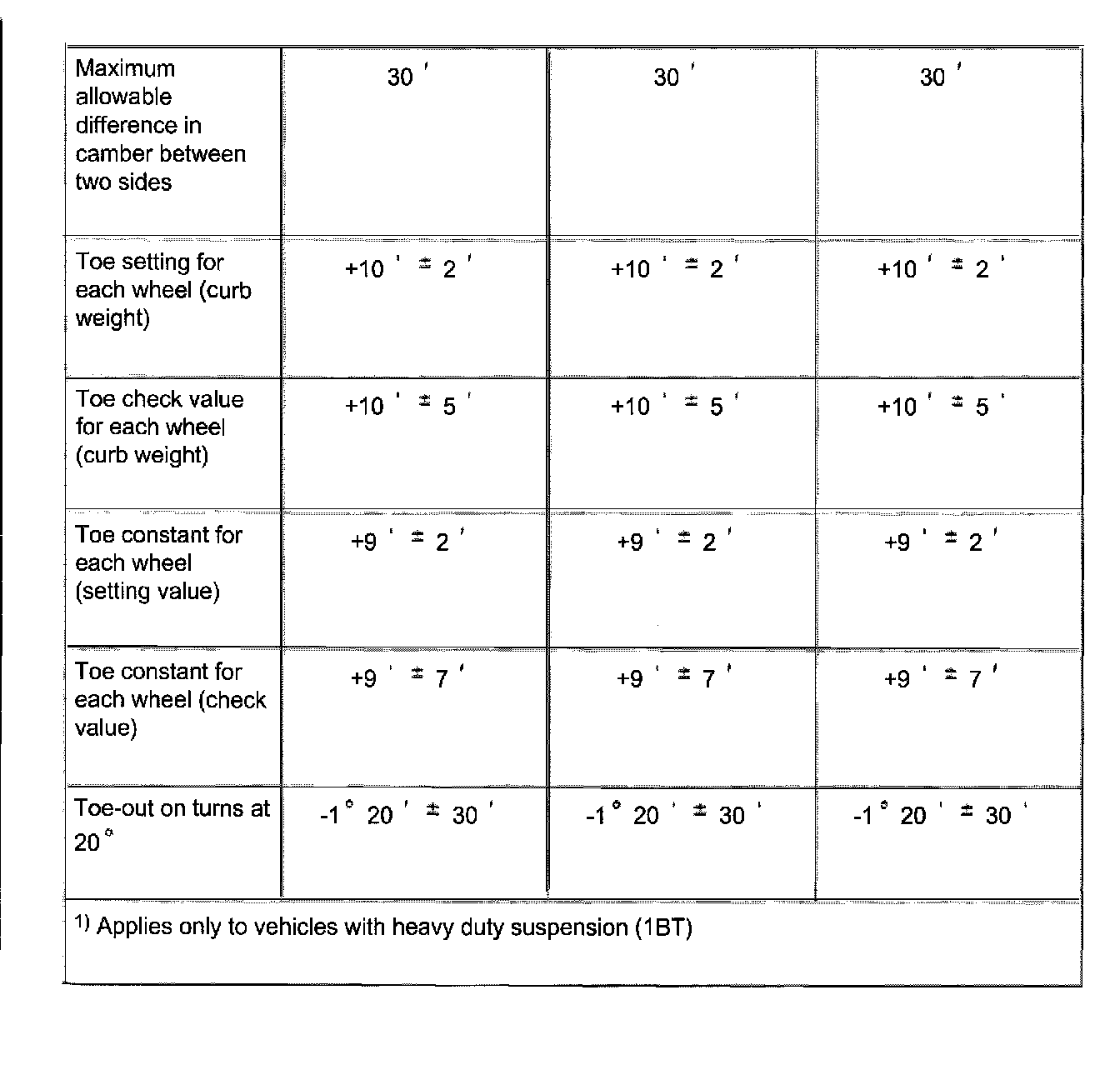

Wheel Alignment Specifications All Wheel Drive (AWD), Front Axle Without Aluminium Mounting Bracket (Part 2 Of 2):

Wheel Alignment Specifications All Wheel Drive (AWD), Front Axle With Aluminium Mounting Bracket (Part 1 Of 2):

Wheel Alignment Specifications All Wheel Drive (AWD), Front Axle With Aluminium Mounting Bracket (Part 2 Of 2):

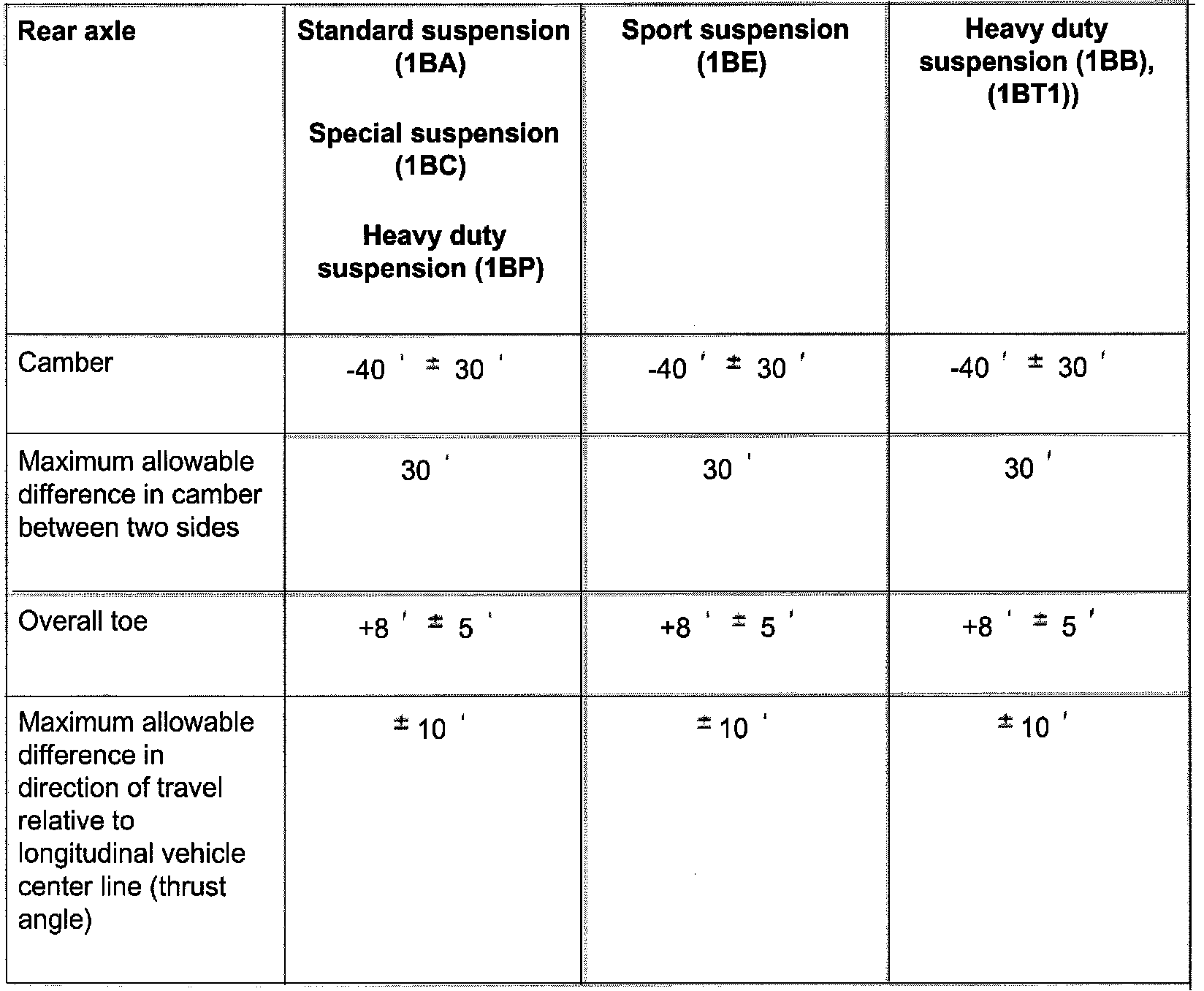

Wheel Alignment Specifications All Wheel Drive (AWD), Rear Axle (Part 1 Of 2):

Wheel Alignment Specifications Front Wheel Drive (FWD), Rear Axle (Part 2 Of 2):

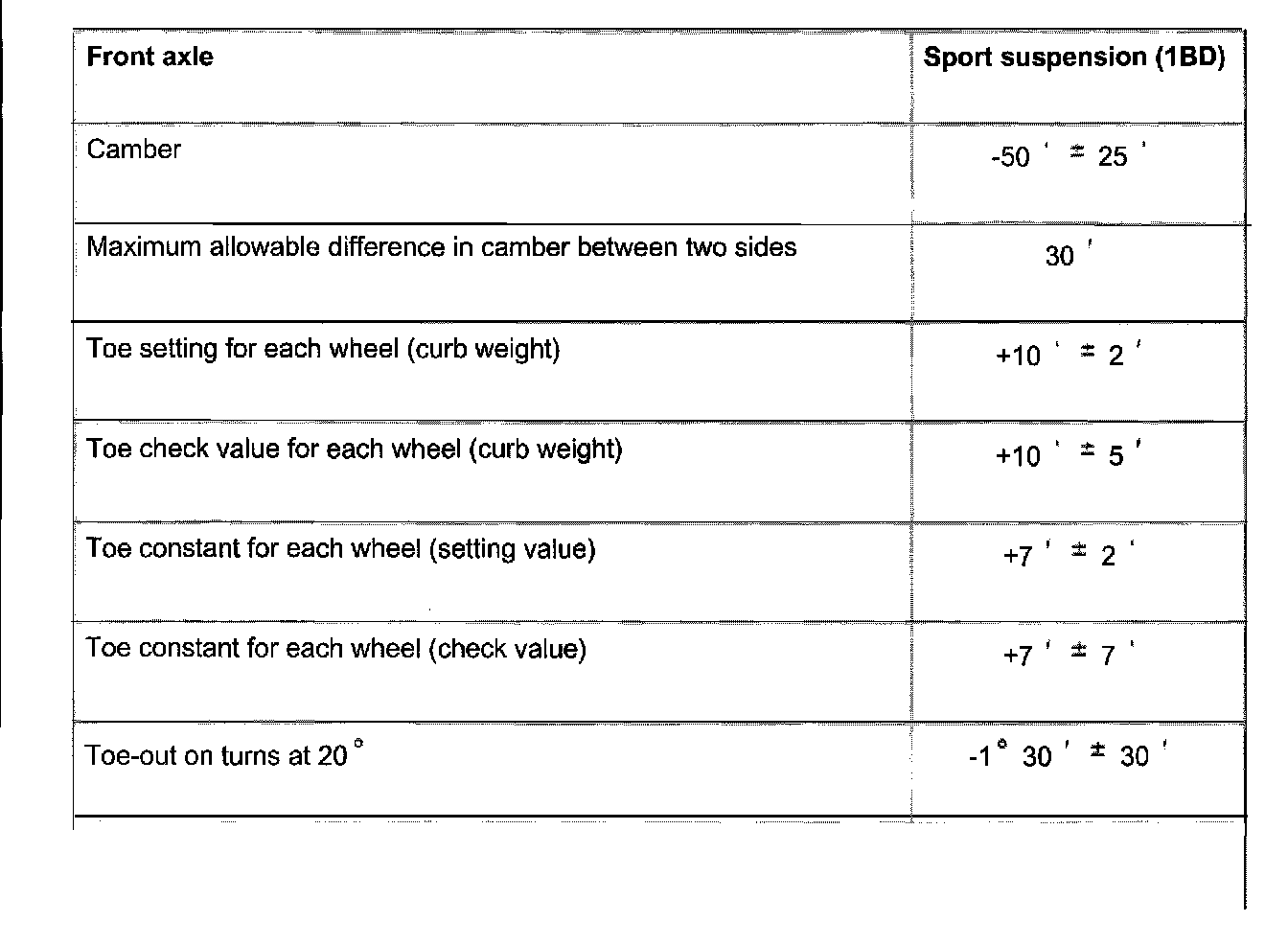

Wheel Alignment Specifications Sport Suspension (1BD), Front Axle:

Wheel Alignment Specifications Sport Suspension (1BD), Rear Axle:
