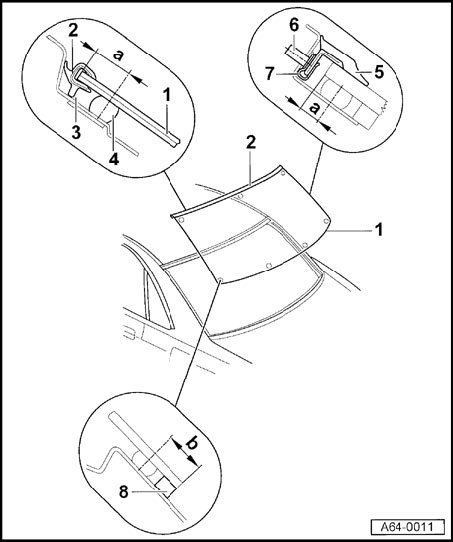

Assembly Overview



Assembly Overview







1 - Rear window
2 - Cover strip
- Slide to center before installation of window
- Note assembly marking on glass and cover strip
3 - Stoppers
- Integrated in cover strip and distributed throughout length of cover strip
4 - Adhesive bead
- Bead cross section
- Note varying spacing dimensions to window edge
- Dimension - a - = 8 mm from window edge
- Dimension - b - = 13 mm







5 - Cover strip
- Before removing rear window, pry out left and right starting at bottom
6 - Hollow rivet
7 - Clamping strip
- Press cover strip - 5 - into clamping strip after window assembly
8 - Spacers
- Attach 4x according to markings on lower window edge
