EGR Temperature Sensor: Service and Repair

Exhaust Gas Temperature Sensor, Removing And Installing

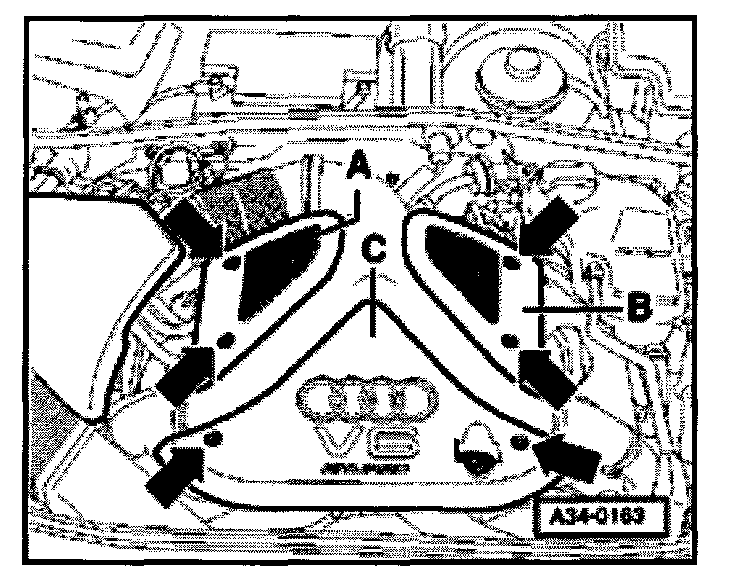

- Remove bolts (arrows) and remove engine covers -A- and -B-.

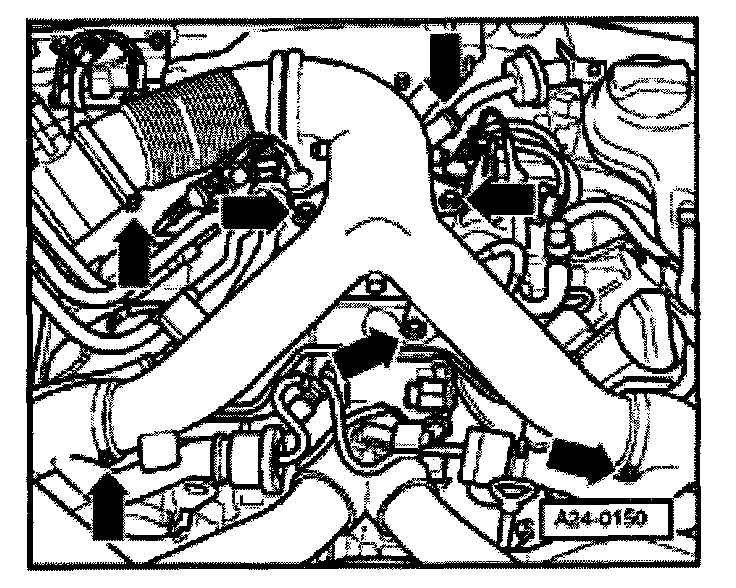

- Remove air distributor (arrows).

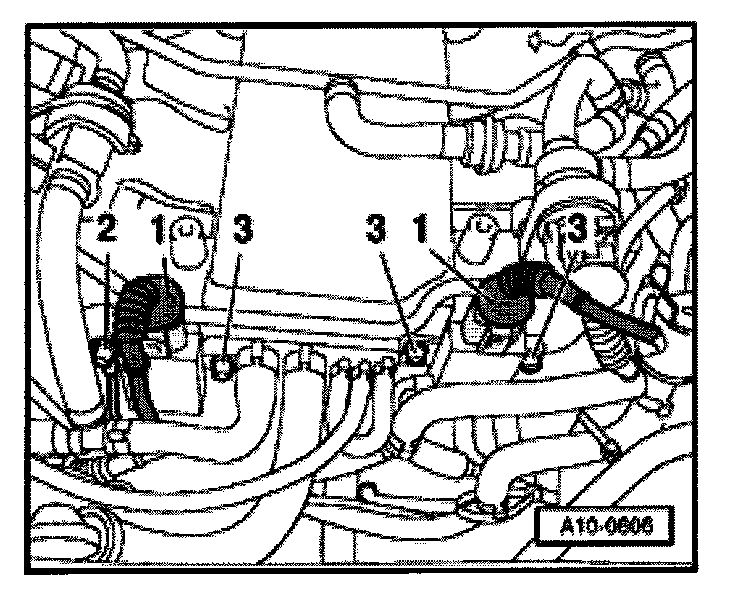

- Disconnect both connectors -2- from control modules for exhaust gas temperature.
- Unscrew control module from intake manifold and set wires aside.

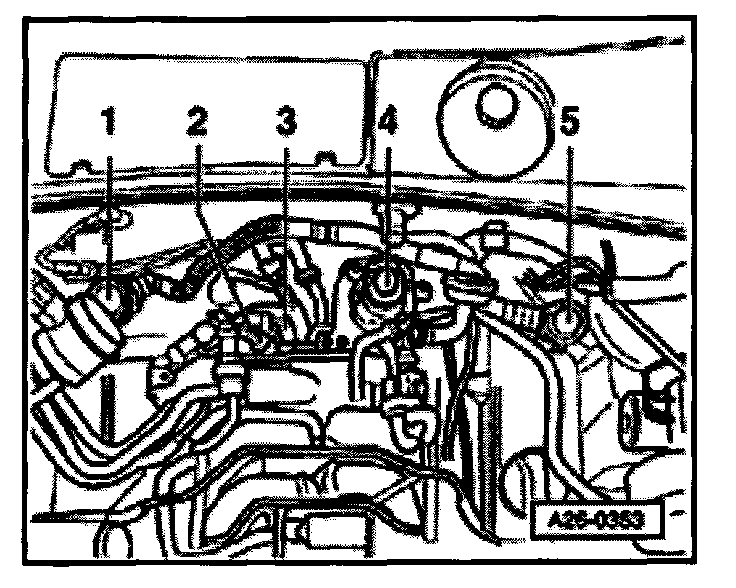

- For vehicles with manual transmission, control modules for exhaust gas temperature are at rear of intake manifold, on left and right.

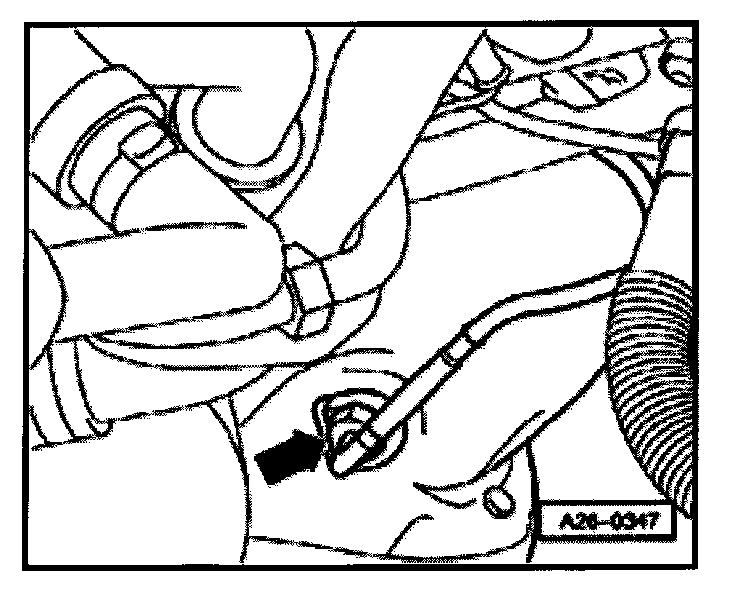

- Unscrew exhaust gas temperature sensor from exhaust manifold.
