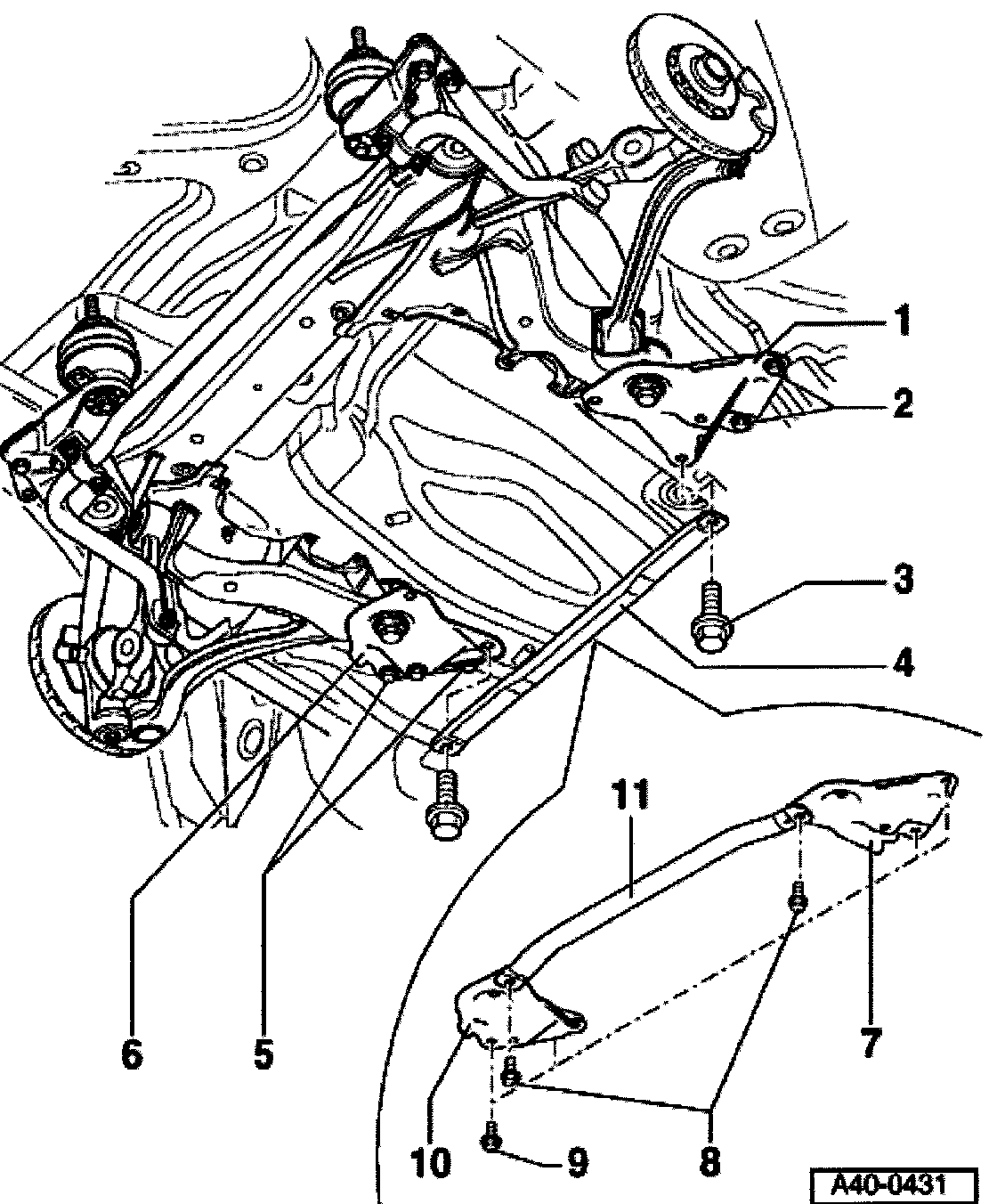

Front Transverse Beam/Support






1. Left support
- for TDI
2. Combination bolt
- 30 Nm + additional 90° (1/4 turn)
- Use new bolt
3. Combination bolt
- 40 Nm
4. Transverse beam
- for TDI
5. Combination bolt
- 30 Nm + additional 90 ° (1/4 turn)
- Use new bolt
6. Right support
- for TDI
7. Left support
- for BiTurbo
8. Combination bolt
- 75 Nm
9. Combination bolt
- 30 Nm + additional 90° (1/4 turn)
- Use new bolt
10. Right support
- for BiTurbo
11. Transverse beam
- for BiTurbo
