Fuel Filter: Service and Repair

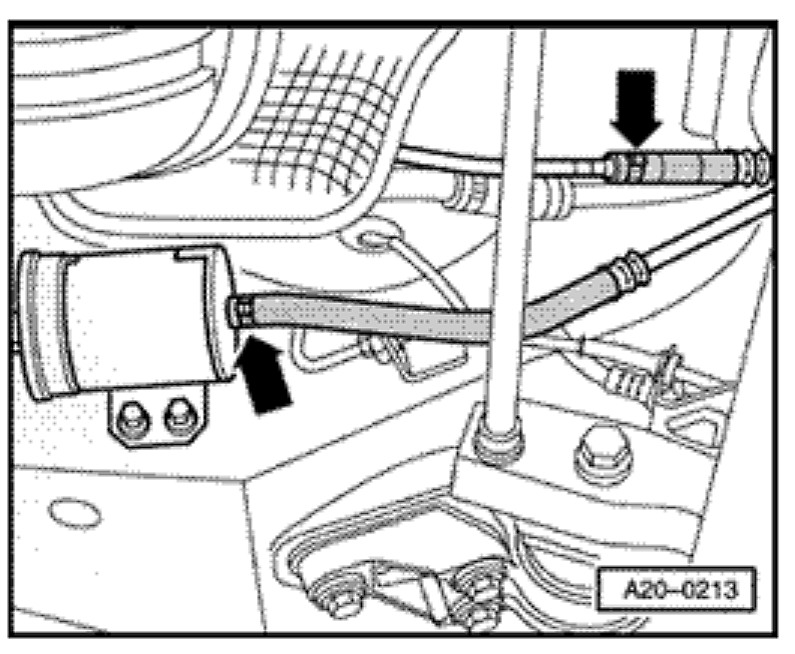

Disconnect fuel supply and return lines (arrows)

Fuel filter component overview

WARNING: Fire hazard. DO NOT smoke or work near heaters or have anything in the area that can ignite fuel.







1. 2 Nm
2. Connection flange hose for fuel supply line
3. Banjo bolt - 23 Nm (17 ft lb)
4. Sealing washer
Always replace

5. Bracket For fuel filter
6. Fuel supply line From fuel tank
7. Connection flange hose for fuel supply line
8. Banjo bolt - 23 Nm (17 ft lb)
9. Sealing washer
Always replace

10. Fuel filter Under vehicle, in front of right rear wheel
Flow direction is marked by an arrow
Do not interchange connections

11. Fuel supply line
To fuel supply line at fuel rail
