Catalytic Converter: Service and Repair

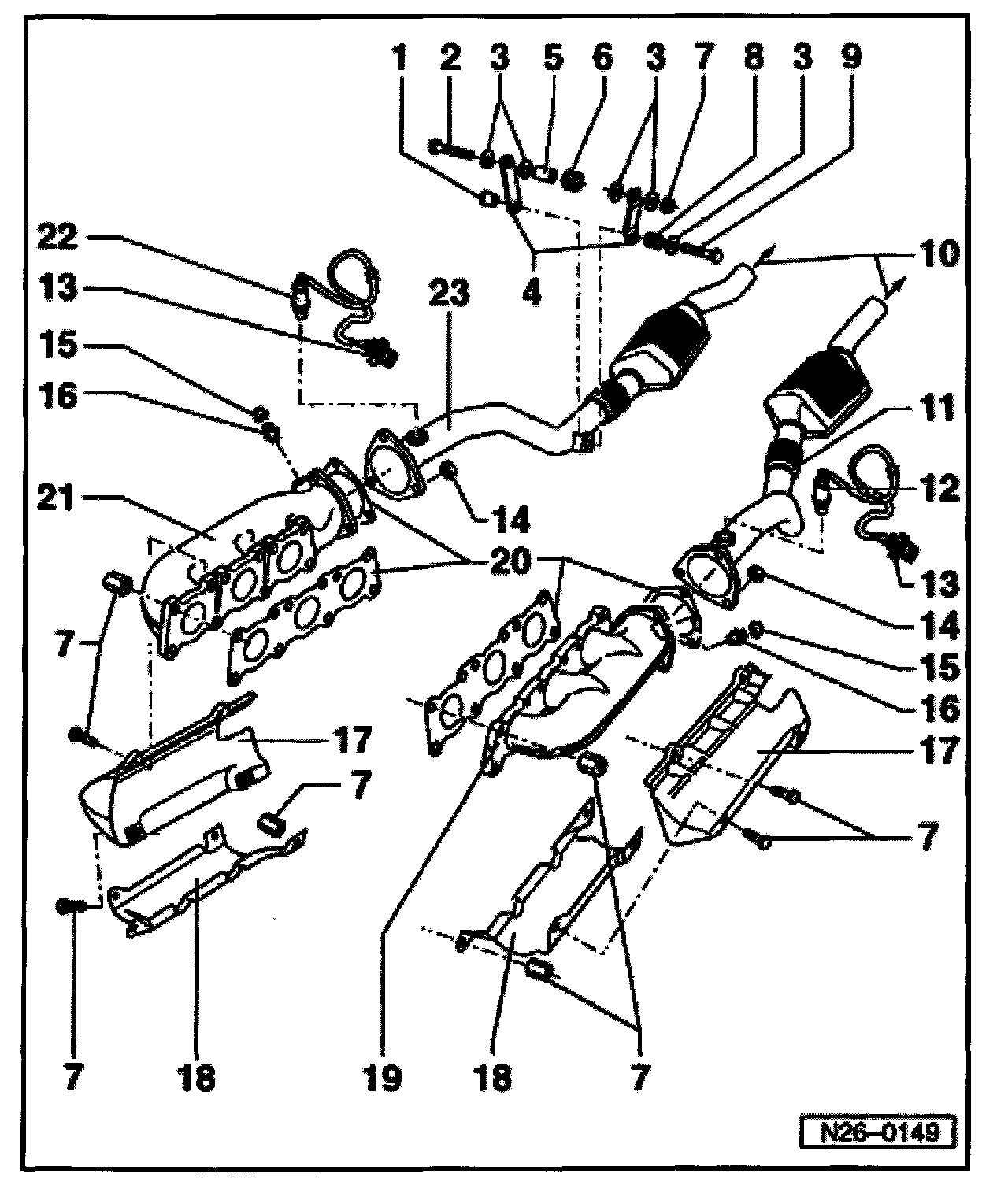

Exhaust Manifold, Front Exhaust Pipe And Three Way Catalytic Converter (TWC) With Attachments
1 - Spacer sleeve
2 - Bolt
3 - Washers
4 - Bracket
5 - Spacer bushing
6 - Rubber bushing
7 - 25 Nm (18 ft lb)
8 - Spring
9 - Bolt
- 25 Nm (18 ft lb)
10 - To center muffler
11 - Left-front exhaust pipe with Three Way Catalytic Converter (TWC)
12 - Heated Oxygen Sensor (HO2S) 2 -G108-
- 50 Nm (37 ft lb)
- Only grease threads using "G5" ("G5" must not get into slots on body of sensor)
13 - 4-pin - harness connectors
- Black
- Mounted to bulkhead
- For Heated Oxygen Sensors (HO2S) and for heating function
14 - 25 Nm (18 ft lb)
15 - Cover cap
- 10 Nm (7 ft lb)
16 - Connection
17 - Upper heat shield
18 - Lower heat shield
19 - Left-side exhaust manifold
20 - Gaskets
- Always replace
21 - Right-side exhaust manifold
22 - Heated Oxygen Sensor (HO2S) -G39-
- 50 Nm (37 ft lb)
- Only grease threads with "G5" ("G5" must not get into slots on body of sensor)
23 - Right- front exhaust pipe with Three Way Catalytic Converter (TWC)
