Rear Axle Toe, Setting
Rear Axle Toe (All-Wheel-Drive Vehicles), Setting -

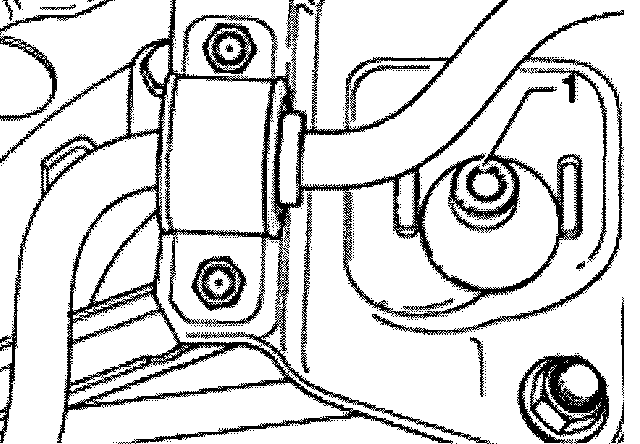

Loosen mounting nut -1-.
Notes: -
The maximum adjustment range is 90 to the left or right of the center position.
-
Adjusting the individual toe settings automatically alters the thrust angle of the axle.
-
Adjust individual toe settings as necessary by turning eccentric bolt.
-
Tighten mounting nut, check settings again and if necessary re-adjust.
