Air Flow Meter/Sensor: Locations



General Air Flow

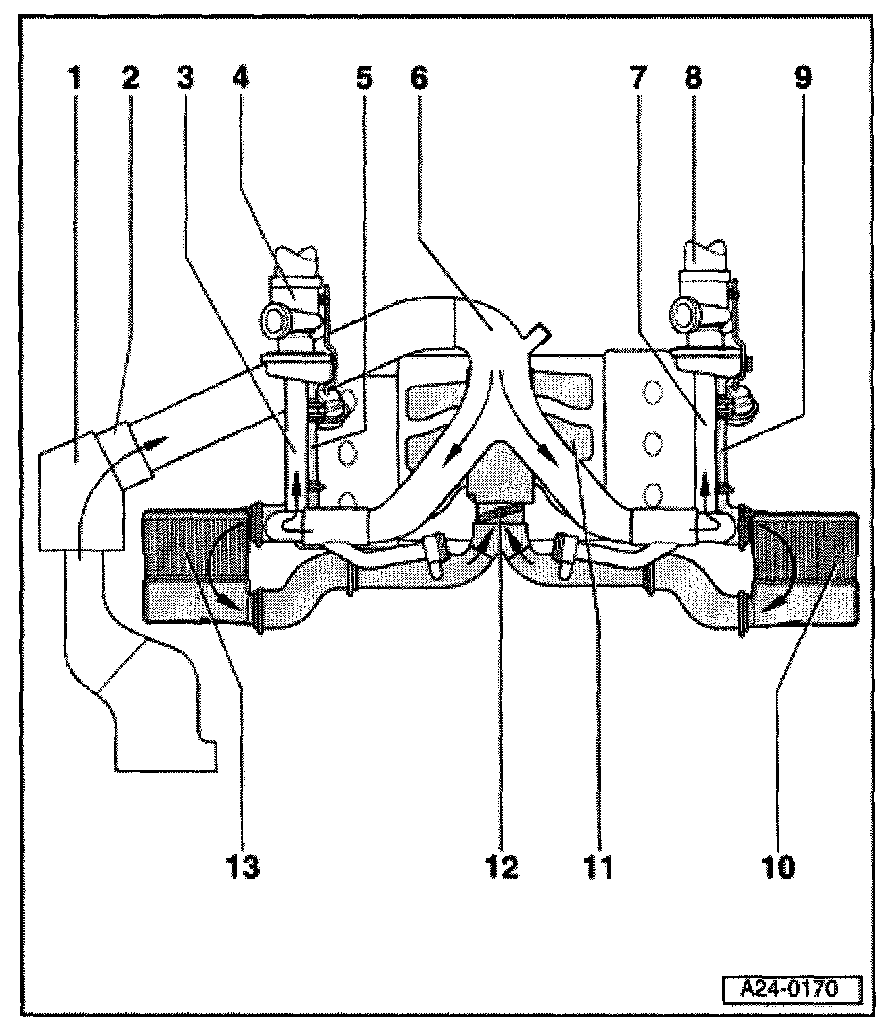

General Air Flow Diagram:





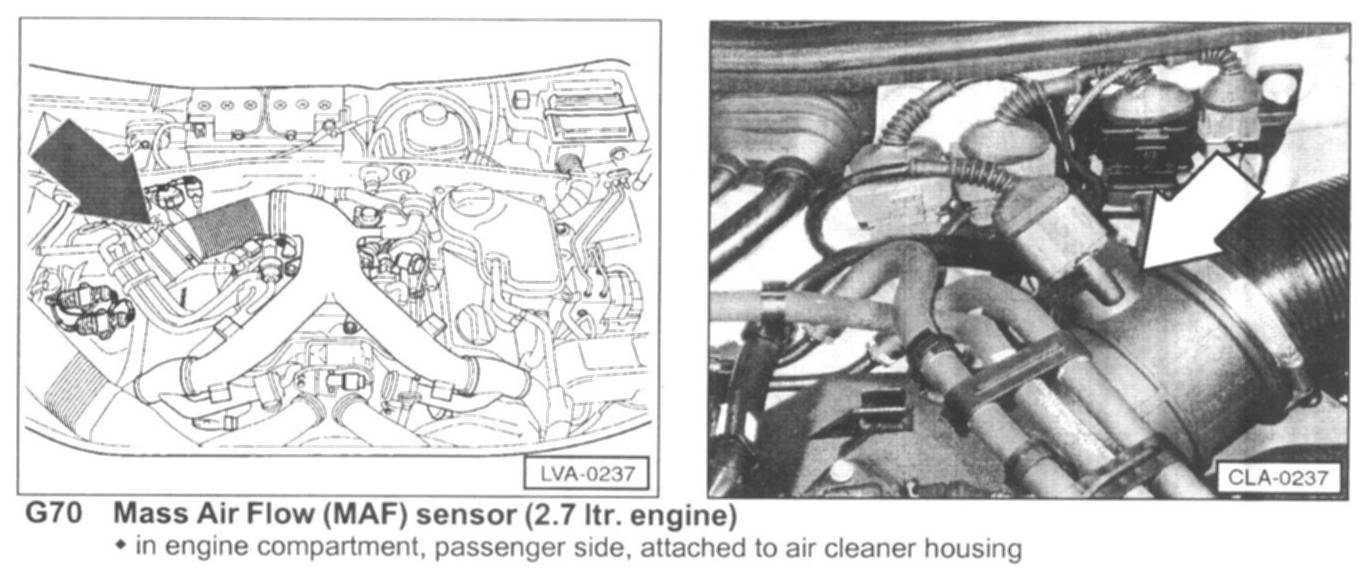

Mass Air Flow (MAF) Sensor (2.7 Ltr. Engine) G70:






1 - Air filter
2 - Mass Air Flow (MAF) sensor -G70
3 - Suction side Turbocharger bank 1
4 - Turbocharger bank 1
5 - Boost pressure side Turbocharger bank 1
6 - Air distributor
7 - Suction side Turbocharger bank 2
8 - Turbocharger bank 2
9 - Boost pressure side Turbocharger bank 2
10 - Charge air cooler bank 2
11 - Intake manifold
12 - Throttle Valve Control Module -J338
13 - Charge air cooler bank 1
