Clutch Switch: Adjustments
Clutch Pedal Position (CPP) switch -F194-, adjusting -

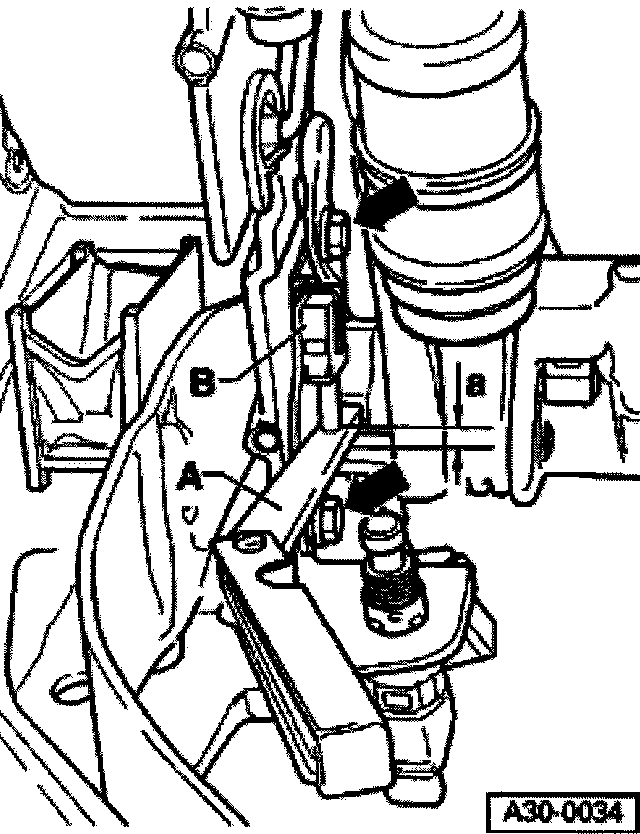

Loosen two bolts (arrow) slightly.
-
Have second technician depress clutch pedal to stop.
-
Insert feeler gauge -A-, with selected measurement -a- 3.2 ^0.2 mm, between activation surface of clutch pedal and switch plunger.
-
Tilt switch -B- toward feeler gauge -A- to stop and tighten both securing bolts (arrows) to
8 Nm.
