Engine Speed (RPM) Signal, Checking




Engine Speed (RPM) Signal, Checking


NOTE: The engine speed signal is taken from terminal 37 on the Engine Control Module (ECM). The signal is used for various functions including the RPM display in the instrument cluster.

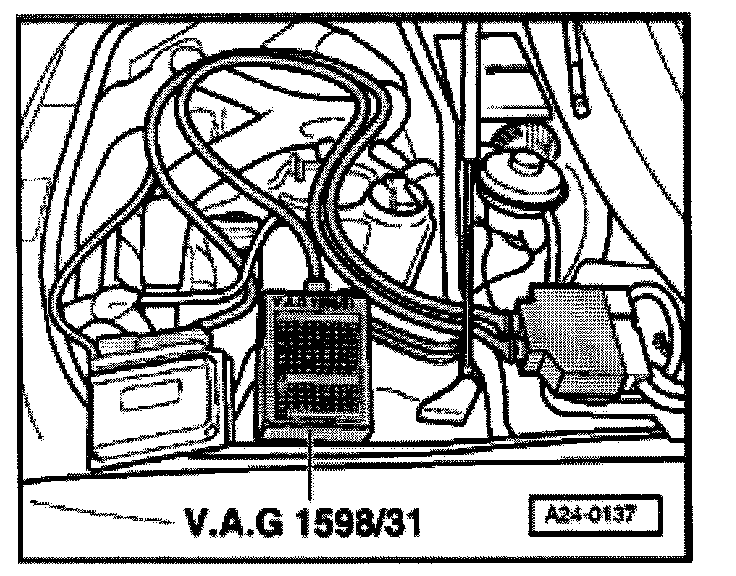

- Connect VAG1598/31 test box to wiring harness for engine control module. Do not connect to the engine control module itself. Refer to "Scan Tool Testing/Wiring And Component Check With VAG1598/31 Test Box", Testing and Inspection
- Check wiring from test box socket 37 to instrument cluster according to wiring diagram for an open circuit.
