Fuel Pump, Removing and Installing

Fuel Pump, Removing and Installing







NOTE:
- The following steps describe fuel pump installation. Removal is the reverse of the installation steps.
- Fuel pump lines -1- may not be kinked. Replace kinked fuel lines and immediately dispose of old parts.
- Replace O-ring -3-.
- Install fuel supply unit.
- Install sender for fuel gauge.
- Vacuum booster -1-, installed position
- Location -A- slide through the flange lock opening.
- Location A in fuel tank, slide in direction of filler neck while turning approx. 1 additional turn to the left See Fig. 1.
- Location B, place (black wire) in fuel tank but do not yet fasten in surge housing 5.
- Location C (white wire) place in fuel tank, but do not yet fasten in hose coupling 4.
- Location D place in fuel tank. Ensure it comes to rest above the thick fuel filler hose in the fuel tank.
- Attach black wire to surge housing 5.
- Connect white wire 2 to hose coupling 4.







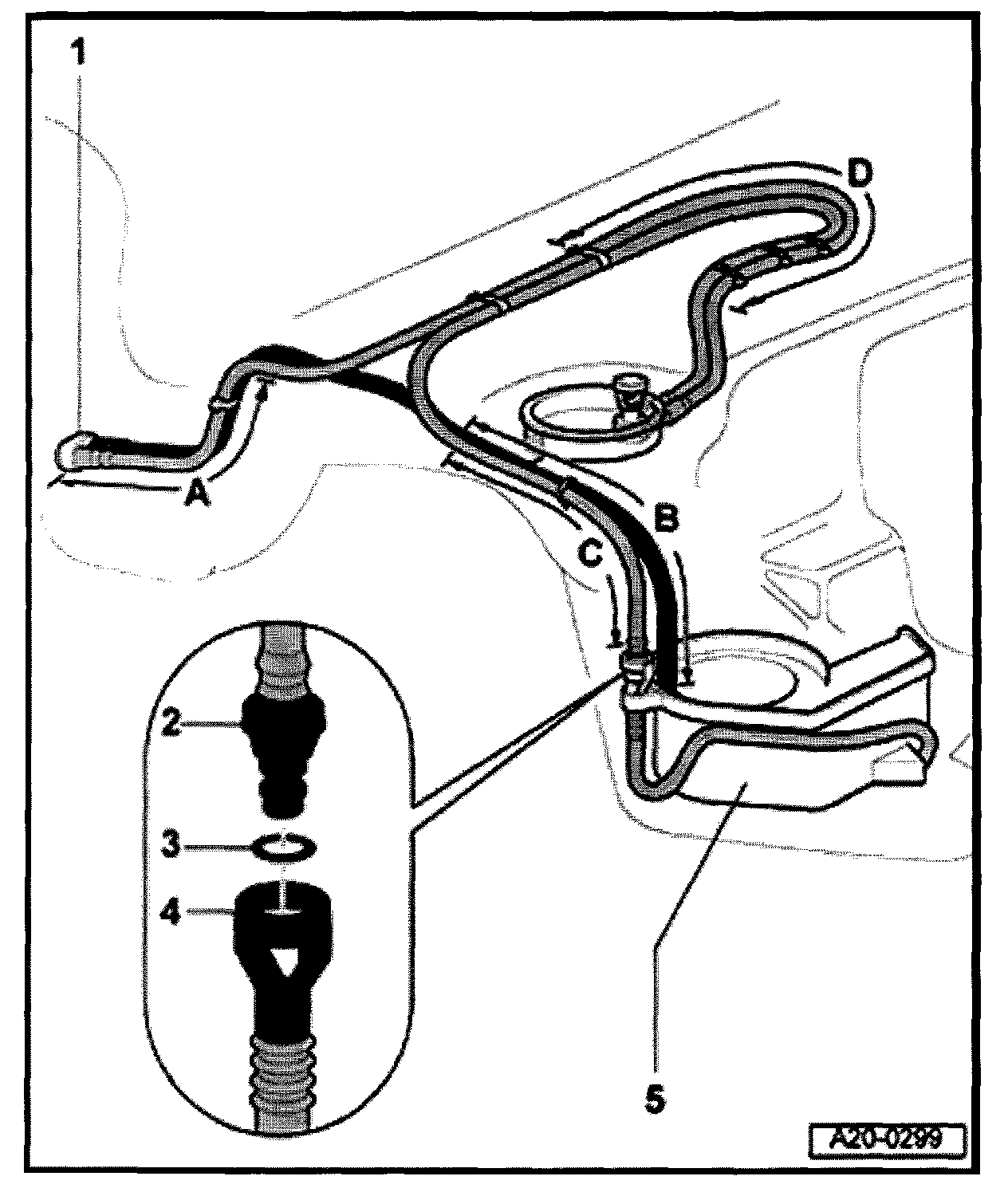

Fig. 1 Fuel pump, installing
- Turn fuel pump in direction of filler neck, into fuel tank, approx. 1 turn to the left -arrows-.
