Control Modules And Electrical Components
CAUTION!
Disconnect the battery Ground (GND) strap before working on the electrical system.
NOTES:
- Before disconnecting the battery, determine the correct coding for the anti-theft radio.
- After reconnecting the battery, check and activate the vehicle's electrical equipment (radio, clock, comfort and convenience features, etc.) as outlined in the Owner's Manual.
The removing and installing procedures for the individual components is described in detail in the relevant Repair Groups.

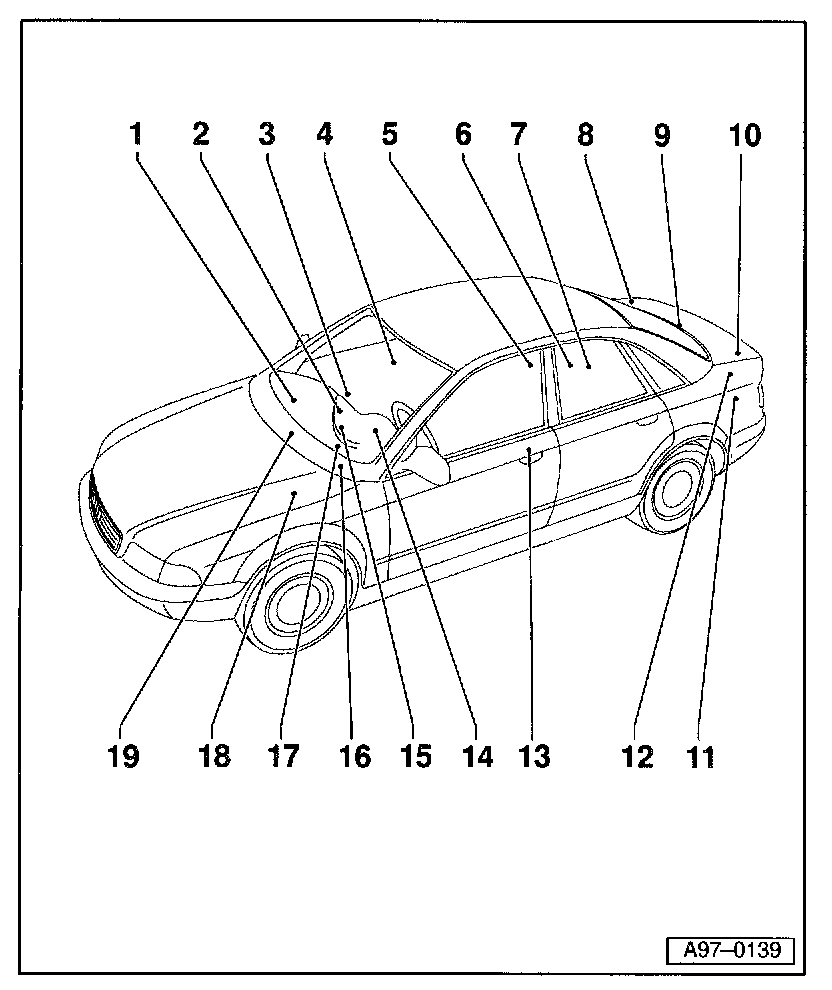

1 - Cruise control, control module -J213-
- Location: cross member, behind glove compartment
2 - A/C control head -E87-
- Location: center console
3 - Automatic Transmission Control Module (TCM) -J217-
- Location: carpet in passenger-side footwell
4 - Automatic day/night interior mirror -Y7-
- Location: front windshield
5 - Automatic vertical headlight aim control module -J431-
- Location: under rear seat, right
6 - Control module for parking aid -J446-
- Location: under rear seat, right
7 - Control module for ultra-sound sensors -J347-
- Location: over left inner fender behind trim on side of trunk
8 - Control module for navigation with CD-mechanism -J401-
- Location: in trunk, right
9 - Antenna for navigation system (GPS) -R50-
- Location: under rear shelf, center
10 - BOSE amplifier
- Location: in trunk, left
11 - Telephone transceiver -R36-
- Location: in trunk, left
12 - CD changer unit -R41-
- Location: in trunk, left
13 - Left heated door lock control module -J210-
- Location: driver's-side door, upper crossbeam
14 - Instrument cluster combination processor -J218-
- Location: integrated into instrument cluster
15 - Radio -R-
- Location: center console
16 - Engine control module
- Location: plenum chamber
17 - Control module for operating electronics, navigation -J402-
- Location: crossbeam, behind instrument cluster
18 - ABS control module (w/EDL) -J104-
- Location: ABS hydraulic control unit in engine compartment
19 - Airbag control module -J234-
- Location: center transmission tunnel under instrument panel
