Removing Lower Section of Steering Column

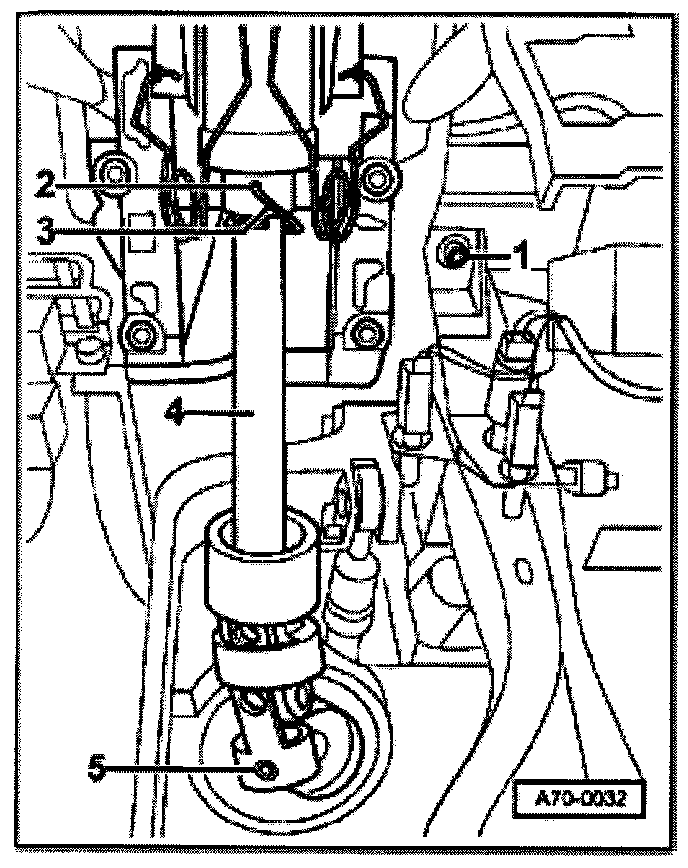

Removing lower section of steering column







- Remove bolt -5- and fold down joint.
Tightening torque: 40 Nm (30 ft lb)


NOTE: The steering column joint can only be attached in one position when installing.


- Push back steering column (lower section) -4- until hole 2 in steering column (upper section) covers hole in steering column (lower section).
- Insert welding wire -3- in hole -2- and secure by wrapping once around steering column.


CAUTION!
Do NOT under any circumstances pull steering column -4- out completely or push it in completely.
