Fig. 15 Installation Position of Circlips

Installation position of circlips

- Circlips for synchronizer hubs, needle bearings and individual gears should be determined as shown Refer to: Determining Thickness of Circlip Fig. 5 Determining Thickness of Circlip






- Circlip -1- secures the tapered roller bearing inner race.

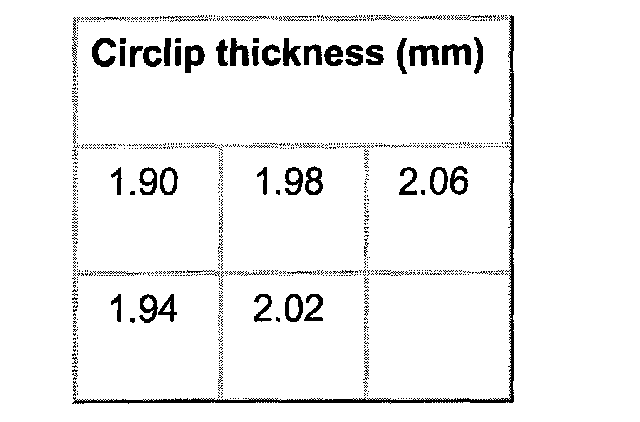

Circlip -1-:

- Circlip -2- secures the synchronizer hub for 1st and 2nd gear.
Characteristic: blue in color

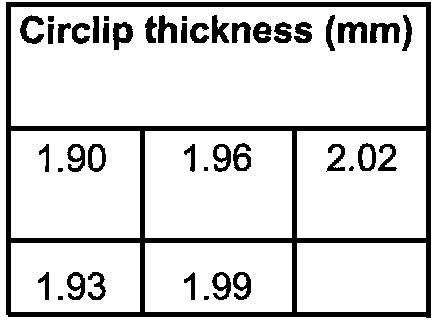

Circlip -2-:

- Circlip -3- secures the needle bearing for 2nd gear.
Characteristic: blue in color
Thickness: 2.50 mm (0.098 inch)

- Circlip -4- secures the 3rd gear

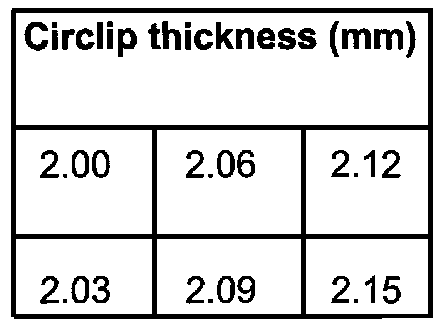

Circlip -4-:

- Circlip -5- secures the 4th gear

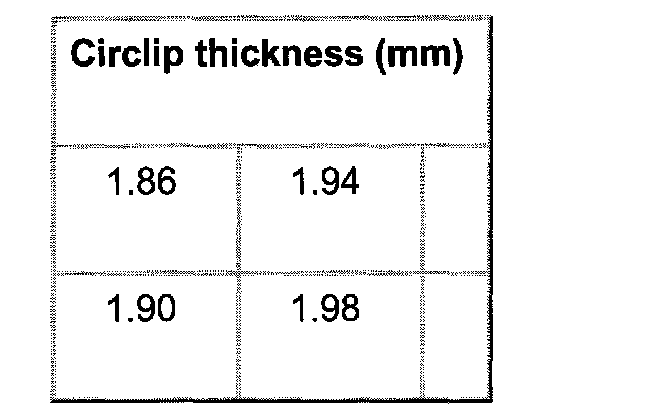

Circlip -5-:

- Circlip -6- secures the needle bearing for 5th gear.
Thickness: 2.00 mm (0.0787 inch)
Identification: brown in color

- Circlip -7- secures the synchronizer hub for 5th and reverse gear.
Characteristic: blue in color

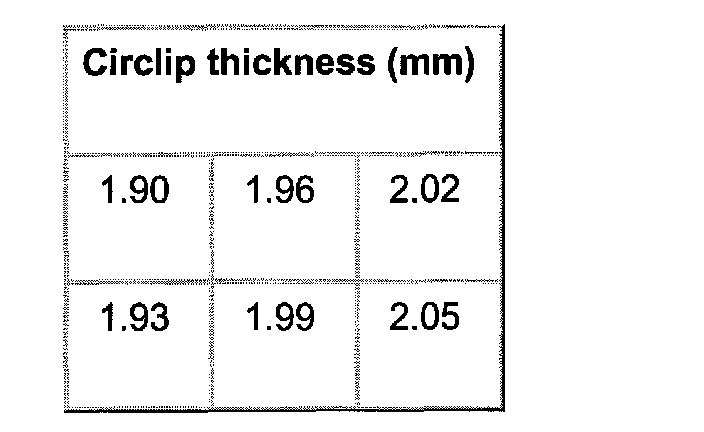

Circlip -7-:

- Determine circlips according to parts catalog.
