Compressor Speed Sensor: Service and Repair
A/C Compressor Speed Sensor -G111-, Removing And Installing
- Discharge refrigerant system.
- Separate speed sensor electrical connector.
- Remove compressor.

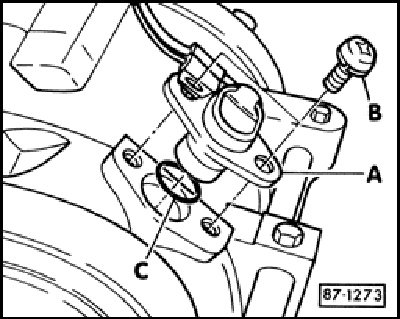

- Remove screw -B-.
- Remove sensor -A-.
- Install in reverse order of removal.
NOTE:
- With sensor removed, inspect teeth on sensor wheel inside compressor for damage (four teeth around entire circumference).
- Replace O-ring -C-,15.5 mm; 1.5mm.
- Torque screw -B- to 5 Nm (44 in lb).
