Air Flow Meter/Sensor: Diagrams

Vacuum System Layout

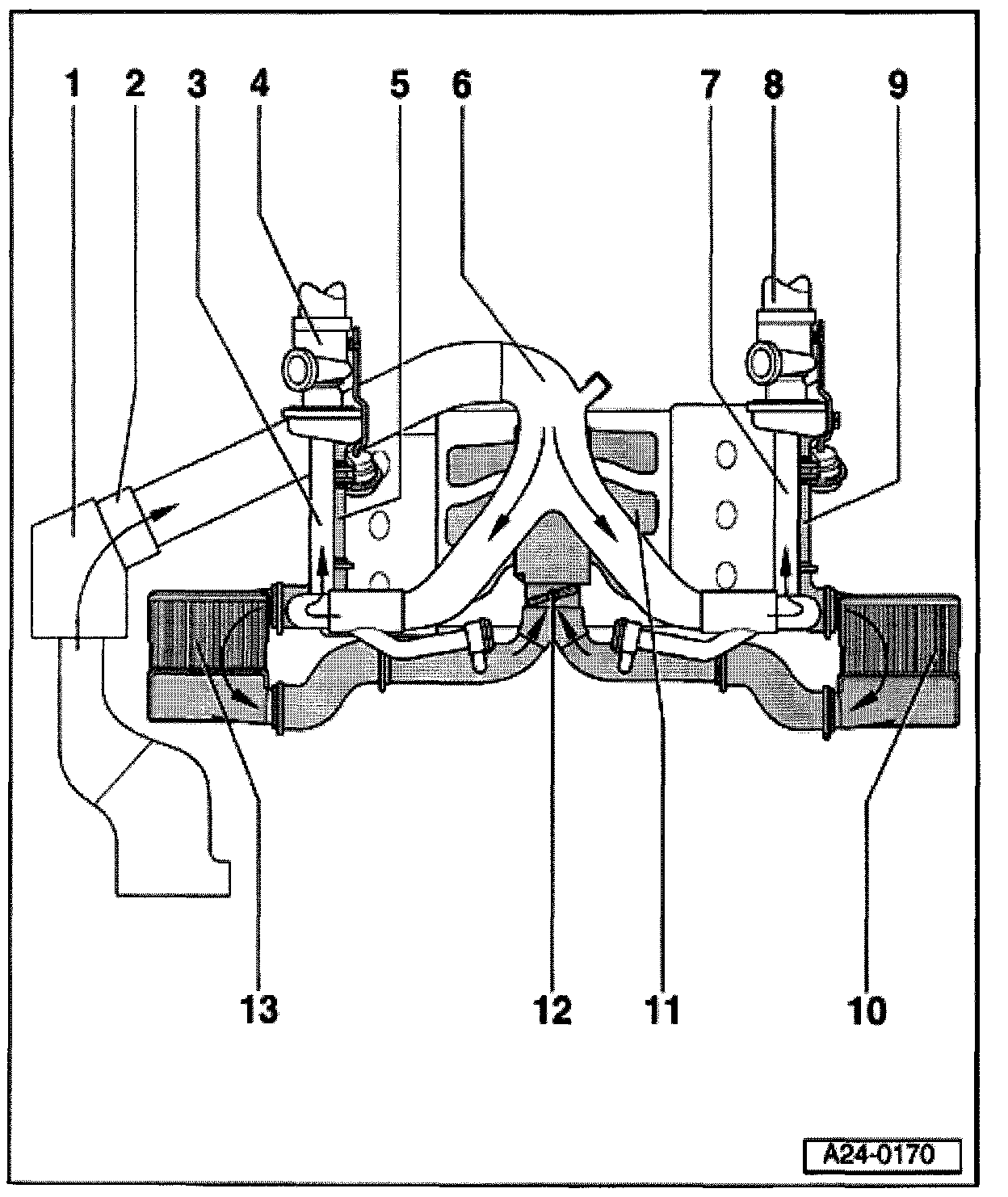

General air flow

1 - Air filter
2 - Mass Air Flow (MAF) sensor -G70
3 - Suction side- Turbocharger bank 1
4 - Turbocharger- bank 1
5 - Boost - pressure side Turbocharger bank 1
6 - Air distributor
7 - Suction side - Turbocharger bank 2
8 - Turbocharger - bank 2
9 - Boost - pressure side Turbocharger bank 2
10 - Charge air cooler bank 2
11 - Intake manifold
12 - Throttle Valve Control Module -J338
13 - Charge air cooler bank 1
