Tiptronic Switch -F189-, Removing and Installing

Tiptronic Switch -F189-, removing and installing - 5 Spd. Automatic Transmission 01V

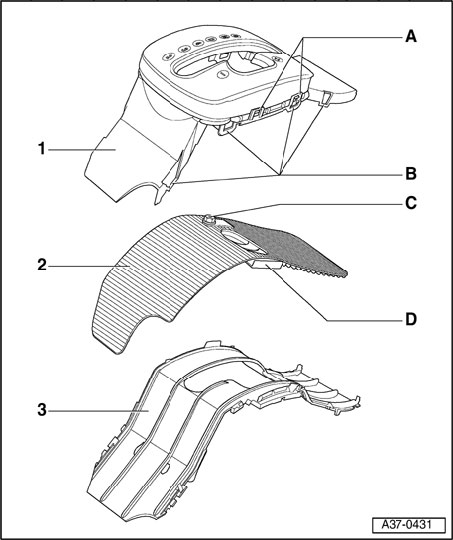

Installation location

The Tiptronic switch is integrated into the upper cover -1- of shift mechanism.

- For occurring malfunctions, the Tiptronic switch must be checked for interference in Measuring Value Block and in the electrical test. Tiptronic switch must only be replaced after wiring test. For vehicles with Tiptronic sport steering wheel, the buttons at steering wheel and their wire connections must be checked.

Removing

- Disassemble shift mechanism cover

Notes:
Solenoids -C- and -D- must be securely fastened on masking panel, if necessary masking panel must be replaced.
If solenoid -D- is missing (or has fallen out), Tiptronic switch will not work, i.e. masking panel must be replaced. In this case the Tiptronic switch must not be replaced.

- To replace Tiptronic switch, upper cover -1- must be replaced.

Installing

- Install shift mechanism cover
