Steering Mounted Controls Communication Module: Service and Repair



Control Module For Multi-Function Steering Wheel -J453-, Removing And Installing

Removing
- Remove driver's side storage compartment

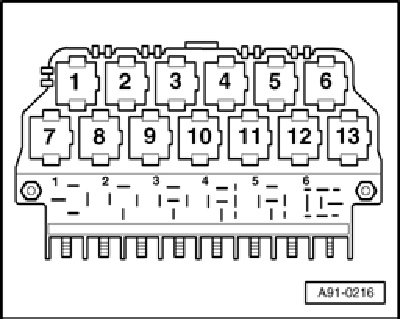

Control module for multi-function steering wheel -J453 is housed in a double-relay box and located in positions -2- and -3- of the 13-pin relay carrier via the central electronics

- Remove control module for multi-function steering wheel from relay socket.

Installing
- Install in reverse order of removal.
