Component Locations In Electronics Box (Plenum Chamber)

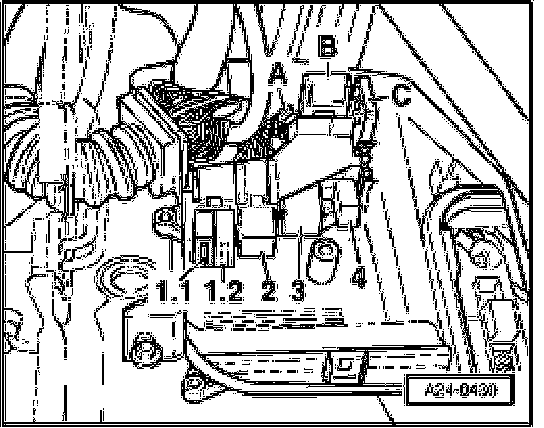

Fig. 6 Component locations in electronics box (plenum chamber). 1.1
-
Not used
1.2
-
Not used
2
-
Motronic Engine Control Module (ECM) Power Supply Relay -J271-
3
-
Secondary Air Injection (AIR) Pump Relay -J299-4
4
-
Not used
A
-
Fuse S282 for engine electronics
B
-
Fuse S130 for secondary air pump
C
-
Not used
