Rear Axle Toe, Adjusting

Rear axle toe, adjusting

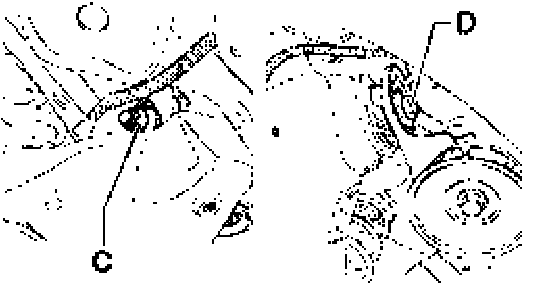

- Remove floor pan panels in front of trapezoidal link.

- Loosen nut of bolt securing front inside of trapezoidal link to subframe -C-.
- Adjust toe by turning eccentric bolt -D- accordingly.
- Check toe value again after tightening nut -C-.

Note:
^ Maximum adjustment range is 90° to left or right from center position.
^ Altering individual toe values automatically changes geometric drive axis as well.
