Speedometer Vehicle Speed Sensor (VSS) -G22-, Replacing

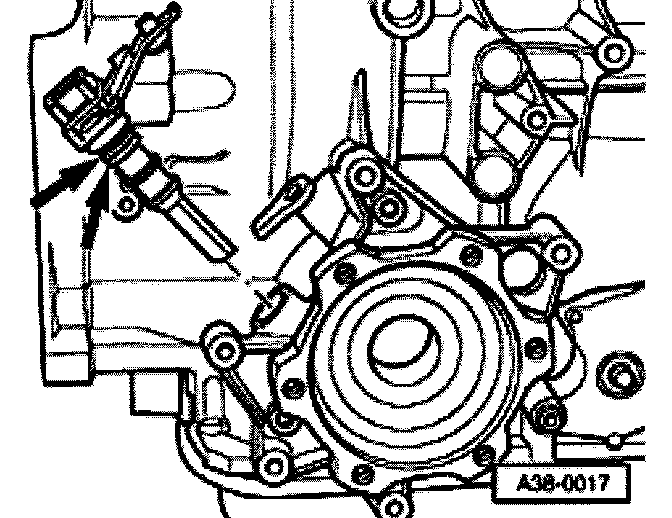

Speedometer Vehicle Speed Sensor-G22
A/T 01V

Removing
- Disconnect connector from the Speedometer Vehicle Speed Sensor-G22
- Press down retaining bar, turn and pull out sensor.

Installing





- Replace O-rings-arrows-.
- Insert O-rings with grease
- Insert sensor.
- Lock retaining bar to mounting bracket for drive flange.
