Evaluating Measured Value Blocks




List Of Measuring Value Blocks

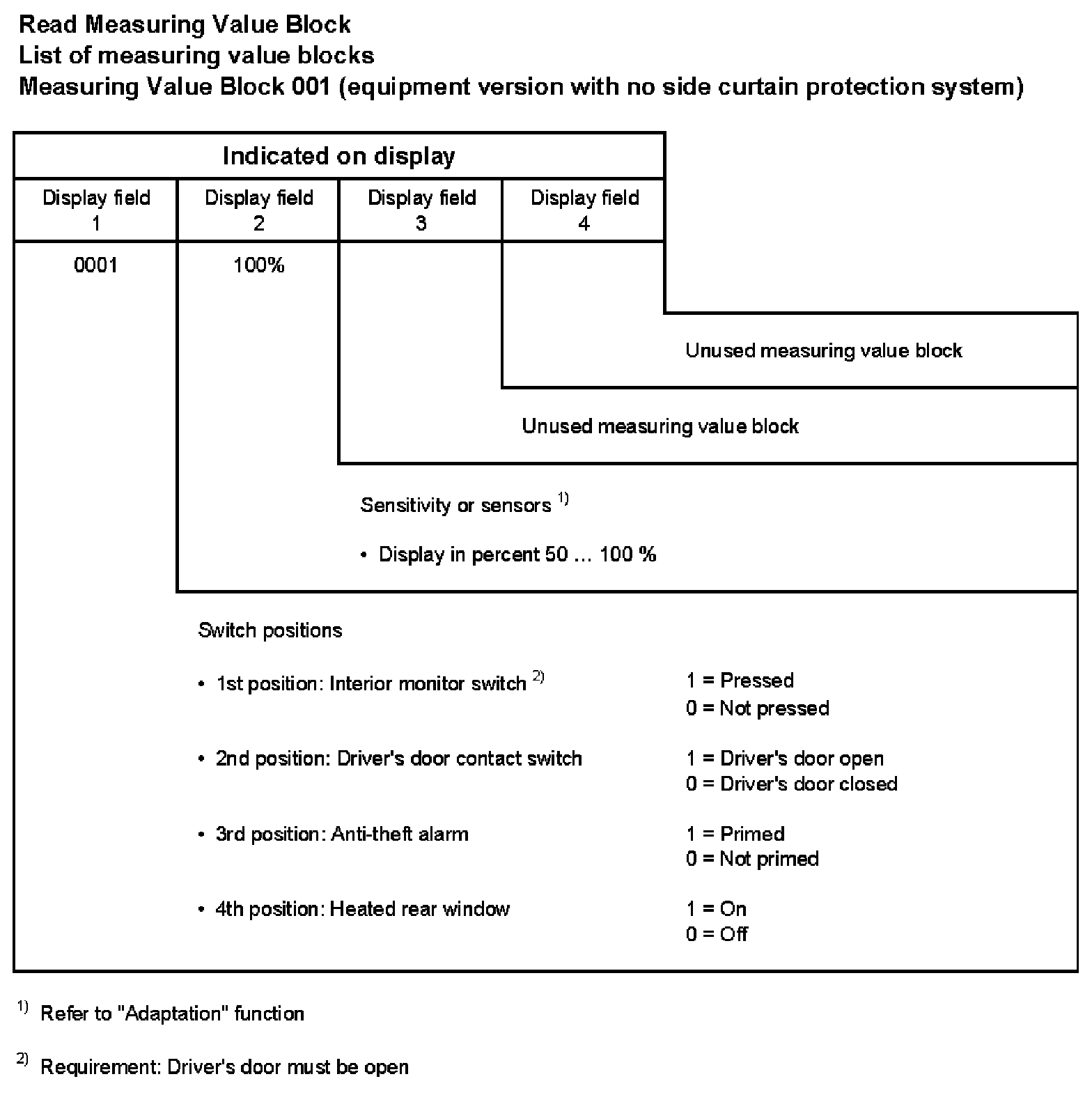

Measuring Value Block 001 (equipment version with no side curtain protection system)

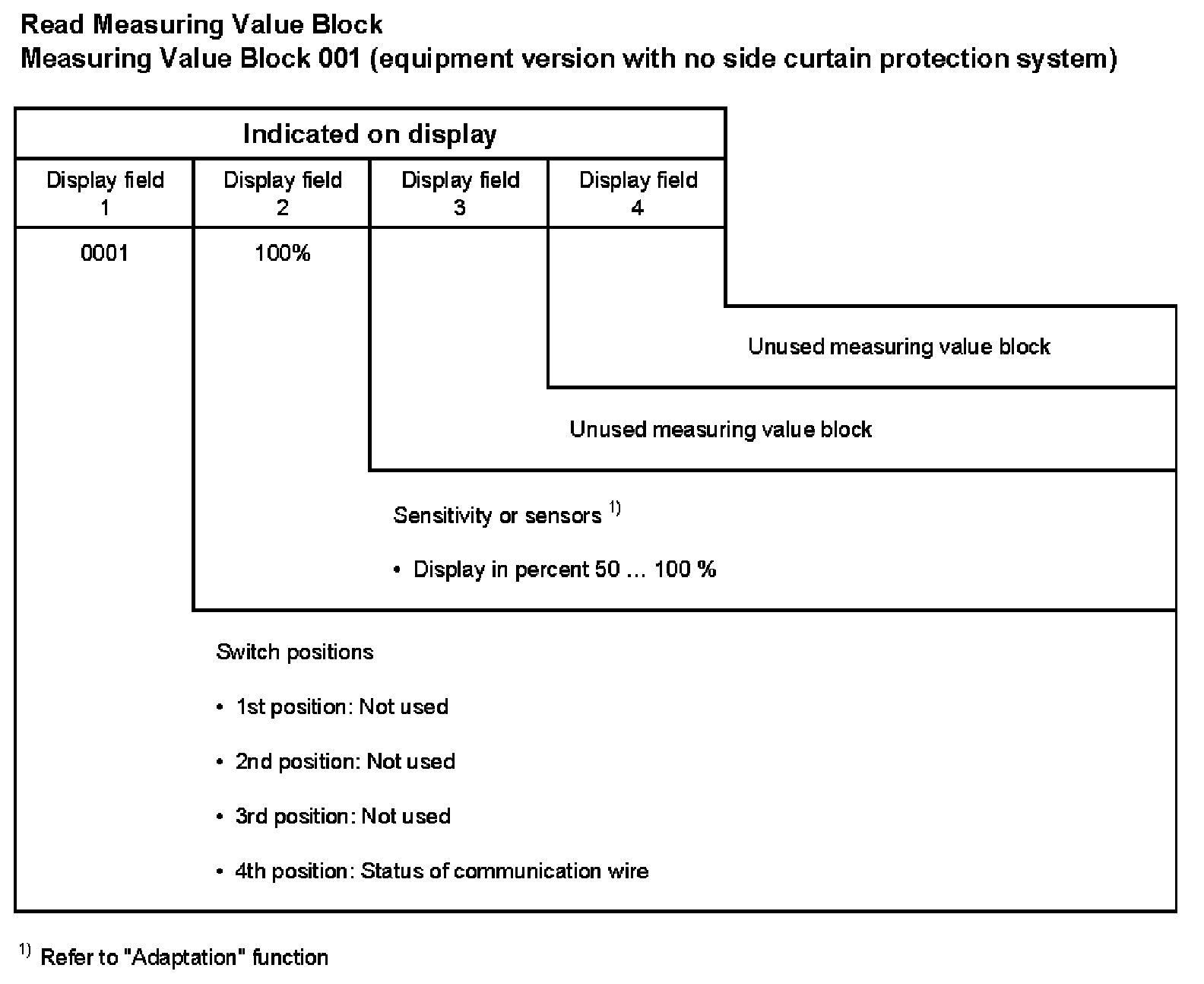

Measuring Value Block 001 (equipment version with side curtain protection system)
