Mass Air Flow Sensor Oil Seals, Replacing



Mass Air Flow Sensor Oil Seals, Replacing

Special tools and workshop equipment required

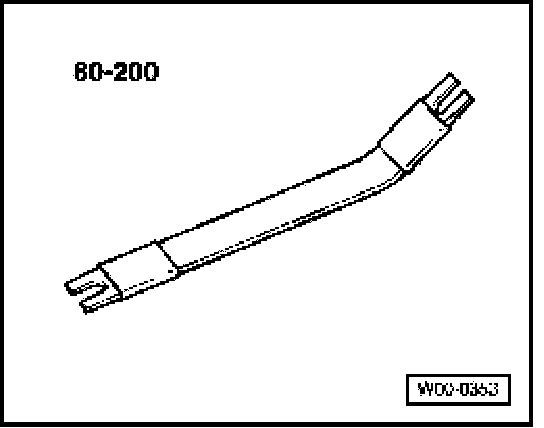

- Lever 80-200

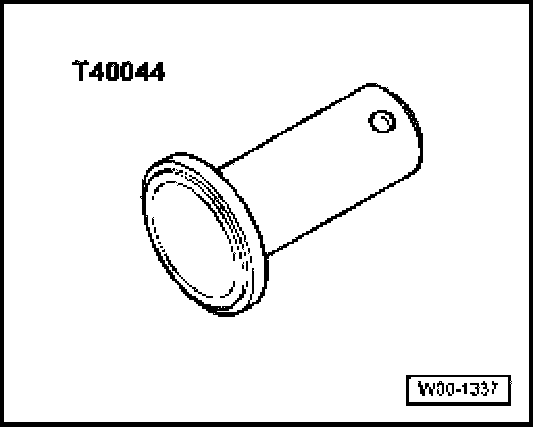

- Pressing tool T40044

Work sequence
- Remove air cleaner housing.

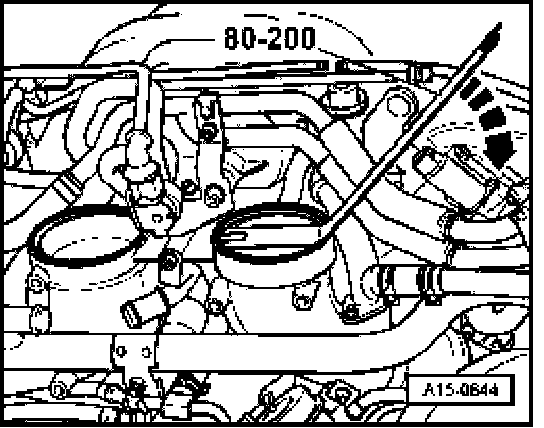

- Carefully pry out oil seals using lever 80-200.

NOTE: When prying out oil seals, take care not to scratch or damage sealing surfaces of the rear air pipe.

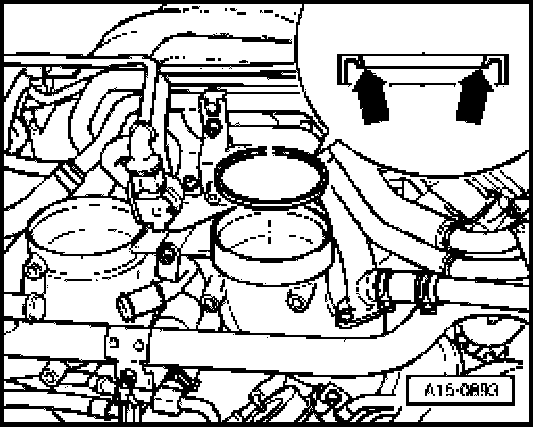

- Pay attention to installation position of new oil seals.







- Sealing lip (arrow) faces downward


NOTE: Never use lubricant or oil.

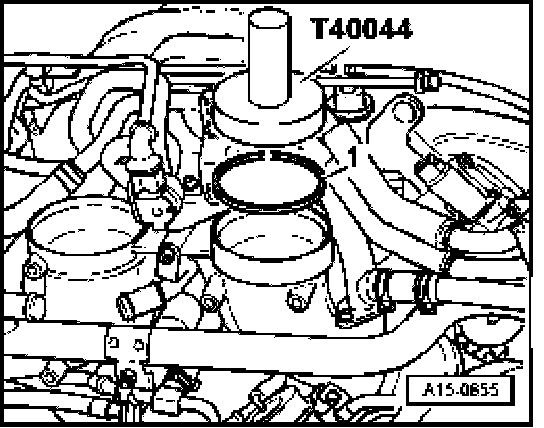

- Position new oil seal on pressing tool T40044 and carefully press it home.
- Repeat procedure on other side.
- Install air cleaner housing.
