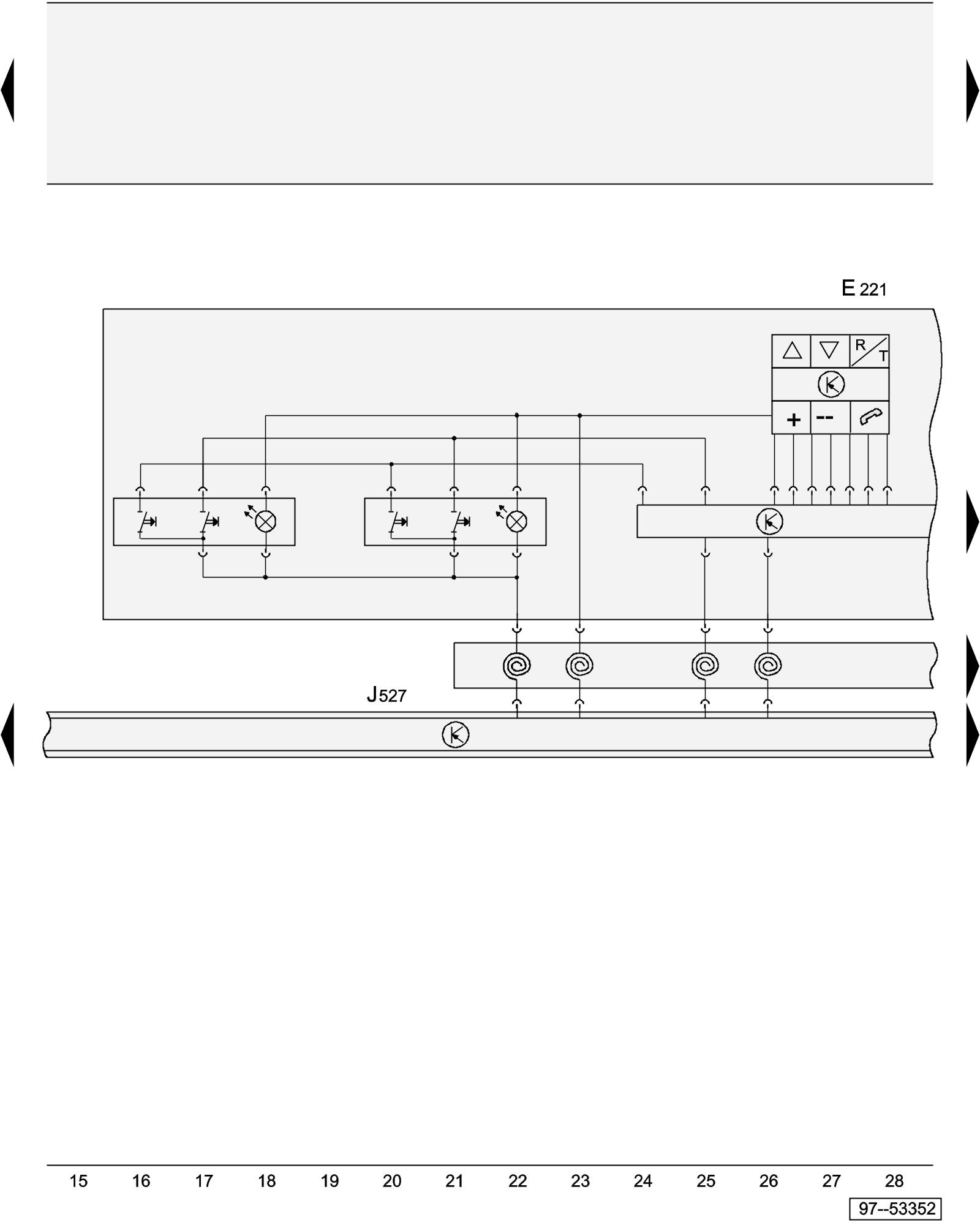

Diagram 321/3 (Tracks 15-28)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Steering Column Electronic Systems Control Module, Control unit in steering wheel





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E221 - Control unit in steering wheel

J527 - Steering Column Electronic Systems Control Module

Previous Diagram 321/2 (Tracks 1-14)

Next Diagram 321/4 (Tracks 29-42)
