Front RS Sport Seat
Control Module, Removing And InstallingRemoving -
Push front seat fully upward and to the front.
-

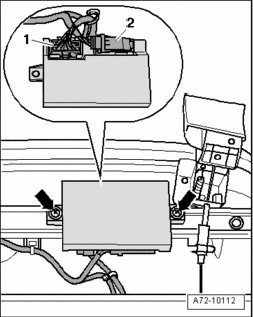

Remove bolts - arrows -.
-
Disconnect electrical harness connectors - 1 - and - 2 - at rear of control module.
-
Remove control module.
InstallingInstallation is reverse of removal, noting the following:
Tightening torqueComponent NmControl module to seat frame
1.5
